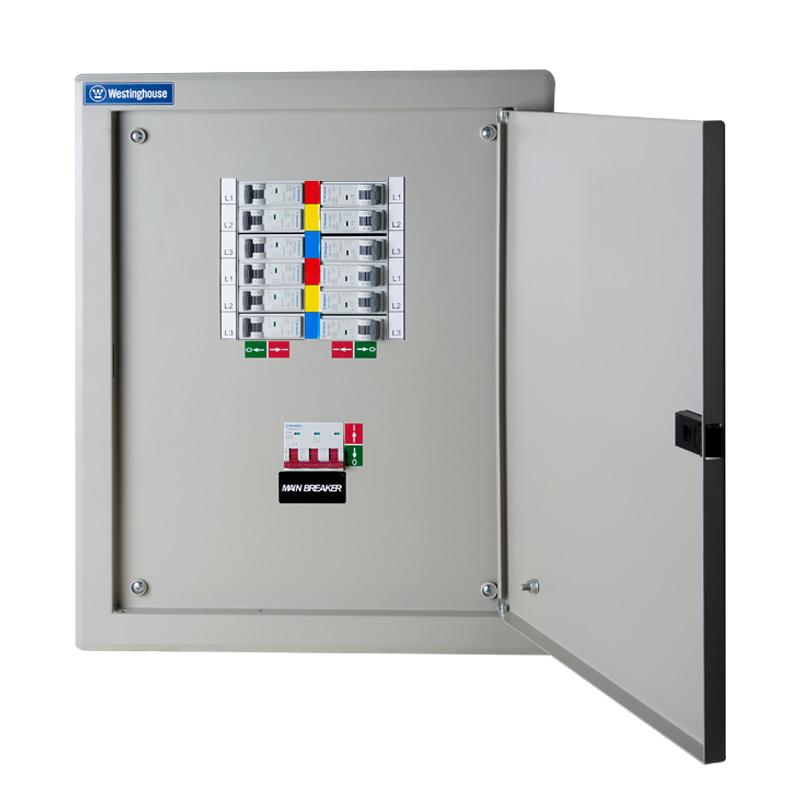

Three Phase MCB Distribution Boards (Final DB)
Westinghouse Bi range of distribution boards has been designed with advice from consultants, contractors, users and distributors.
Feature
- The 250 Amp max incomer final DB assembly complies with IEC 61439-1 & 2.
- ASTA certified and fully type-tested to standard IEC 61439-1 & 2.
- The main busbar is tested and rated at full load 250 Amp.
- Ingress protection up to IP43 with standard to IEC 60529.
- High-quality epoxy-polyester powder paint finish in two-tone finishing.
- Flat removable gland plates make drilling and access easier
- The modular design allows for many combinations of incomers, allowing great customer choice and increased stocking exibility.
Download Datasheet
Download Complete
Datasheet

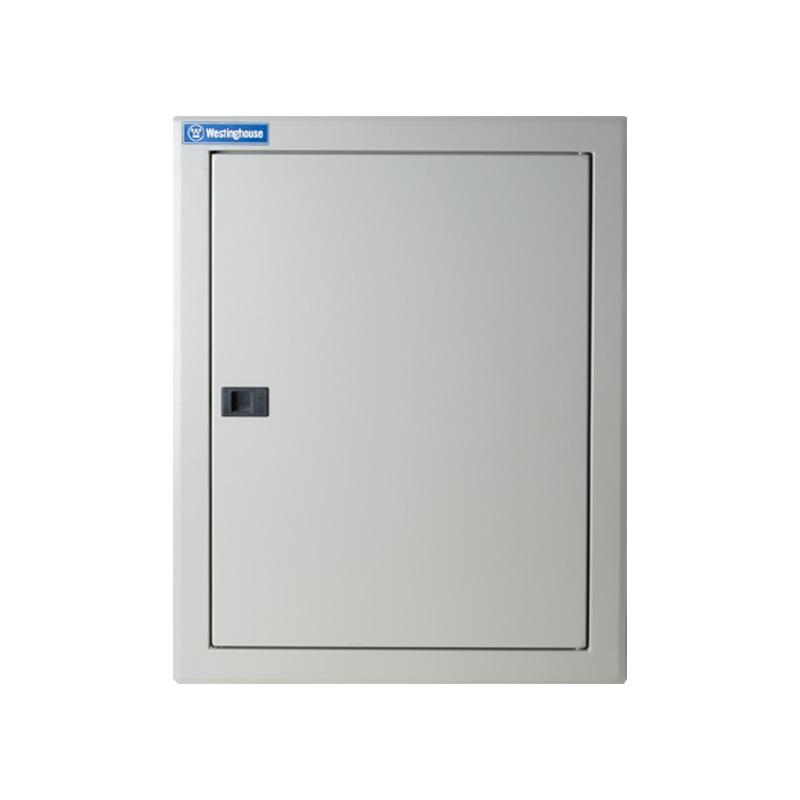

Three Phase MCB Distribution Board (Flush)
Feature
Combining robust high quality engineering with the latest international construction, test and installations standard, Westinghouse Bi range of distribution boards has been designed with advice from consultants, contractors, users and distributors.
The wide range of incomer option includes:
- MCB or RCCB up to 100 Amp.
- Switch disconnector up to 125 Amp.
- MCCB and Moulded Case Switches up to 200 Amp.
Download Datasheet
Download Complete
Datasheet

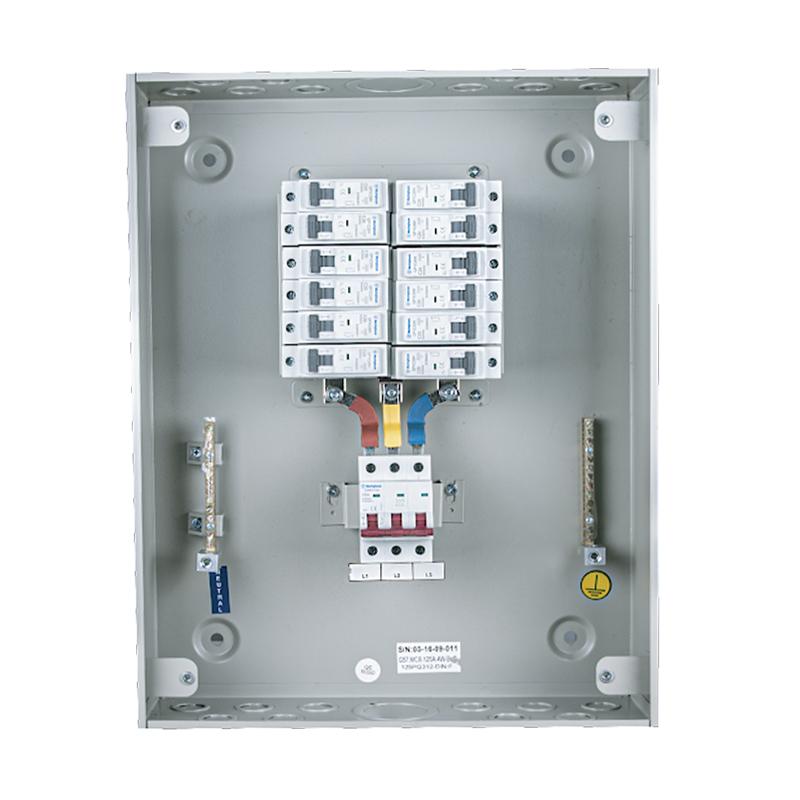

Three Phase MCB Distribution Board (Flush Plug-in Type)
Feature
Combining robust high quality engineering with the latest international construction, test and installations standard, Westinghouse Bi range of distribution boards has been designed with advice from consultants, contractors, users and distributors.
Download Complete
Datasheet

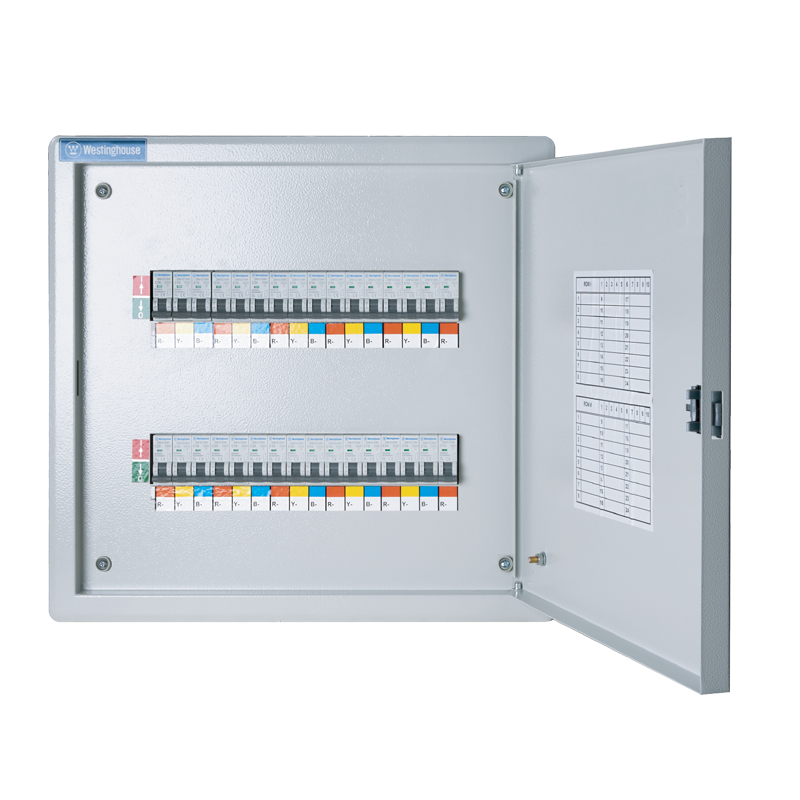

Row Type Distribution Board
Feature
Combining robust high quality engineering with the latest international construction, testing and installations standard, Row Type range of distribution boards has been design to meet the requirement of consultants, contractors, users and distributors.
Download Complete
Datasheet
Three Phase MCB Distribution Board (Surface)
Feature
Combining robust high quality engineering with the latest international construction, test and installations standard, Westinghouse Bi range of distribution boards has been designed with advice from consultants, contractors, users and distributors.
Download Datasheet
Download Complete
Datasheet

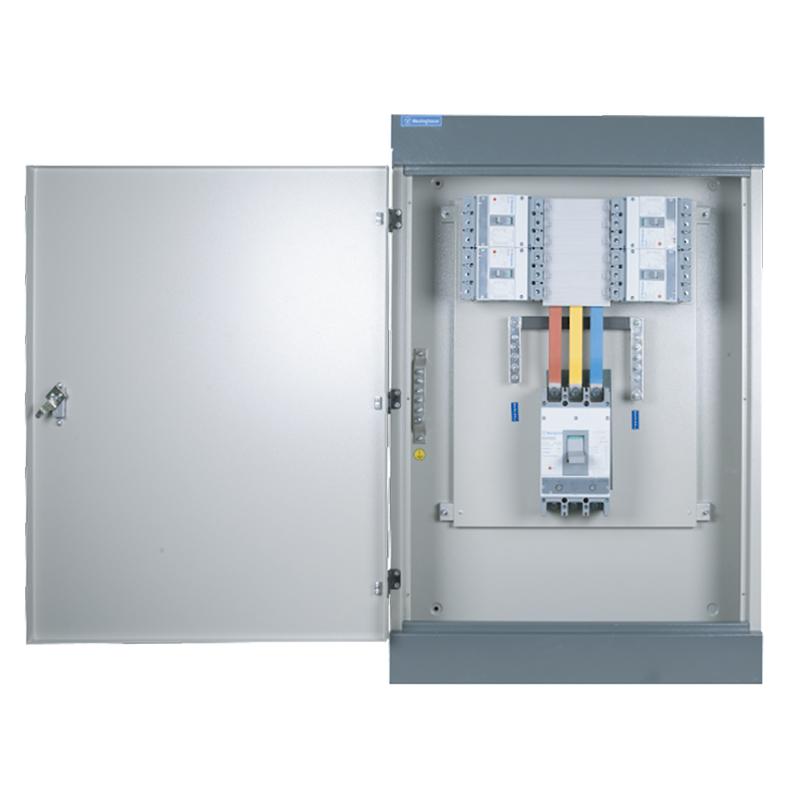

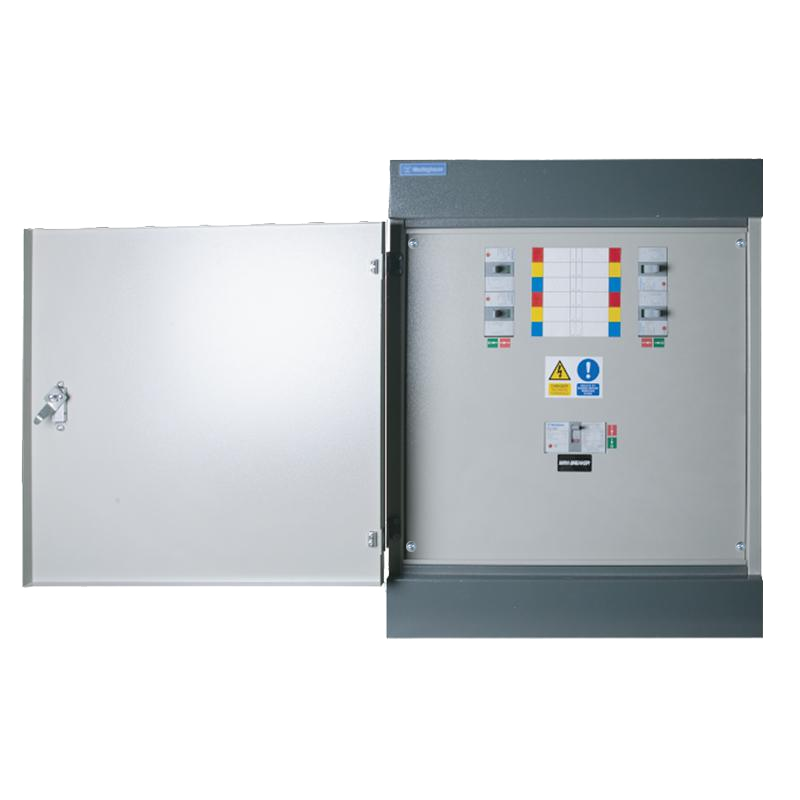

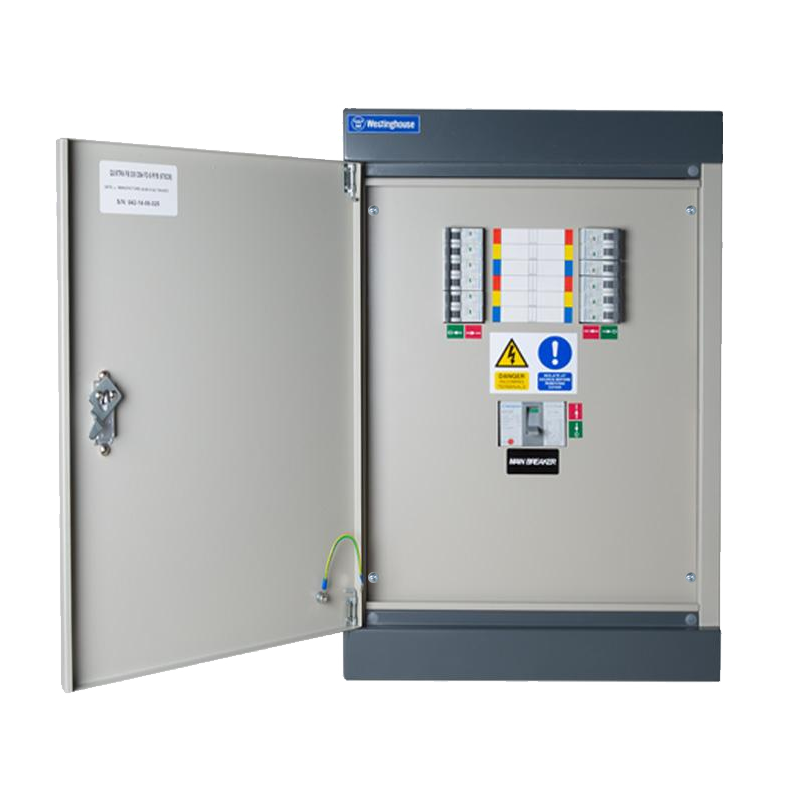

MCCB Panel Board Series (Ci,Gi,Fi)
Feature
- 250A, 400A, & 630A Panel Board versions are available.
- 2 to 18 outgoing ways.
- Outgoing breaker’s up to 250Amp MCCB.
- Ingress protection up to IP43 with standard IEC 60529.
- ASTA certificate fully Type-Tested to standard 61439-1,2 & 3.
- One piece tin-plated copper busbars with full Bracing.
- Flat removable gland plates make drilling and access easier.
- Metering options.
