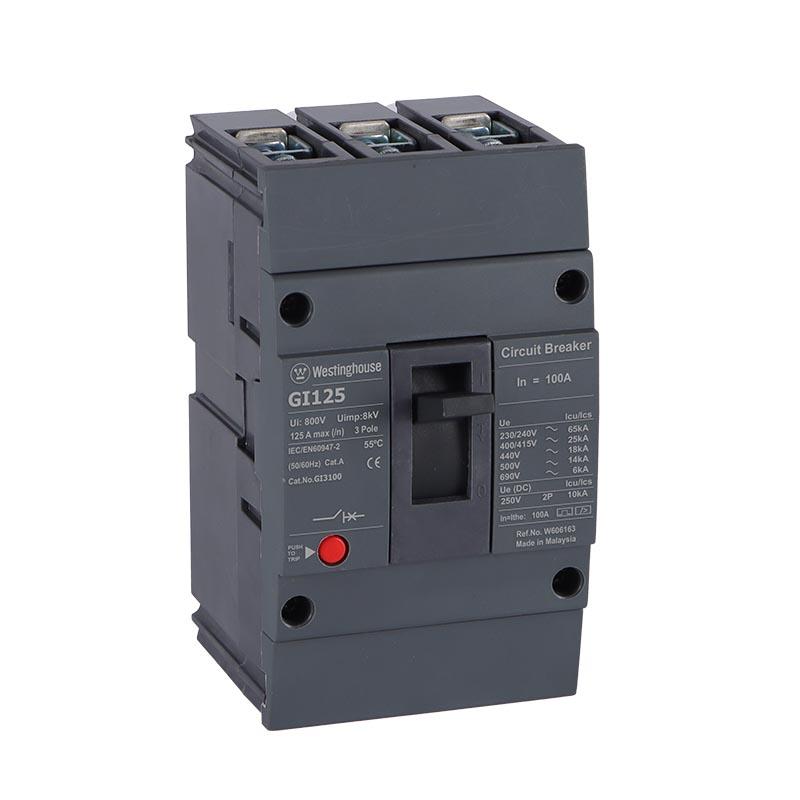

Frame Size G 125 Amps 55°C (HC Series)

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz.



Ue Maximum 415 V
Icu = Ics 18/25/36 kA



Dimensions  H W D Weight Kgs
1 Pole 130 25 76.8 0.3
2 Pole 50 0.5
3 Pole 75 0.7
4 Pole 100 0.9

animation image

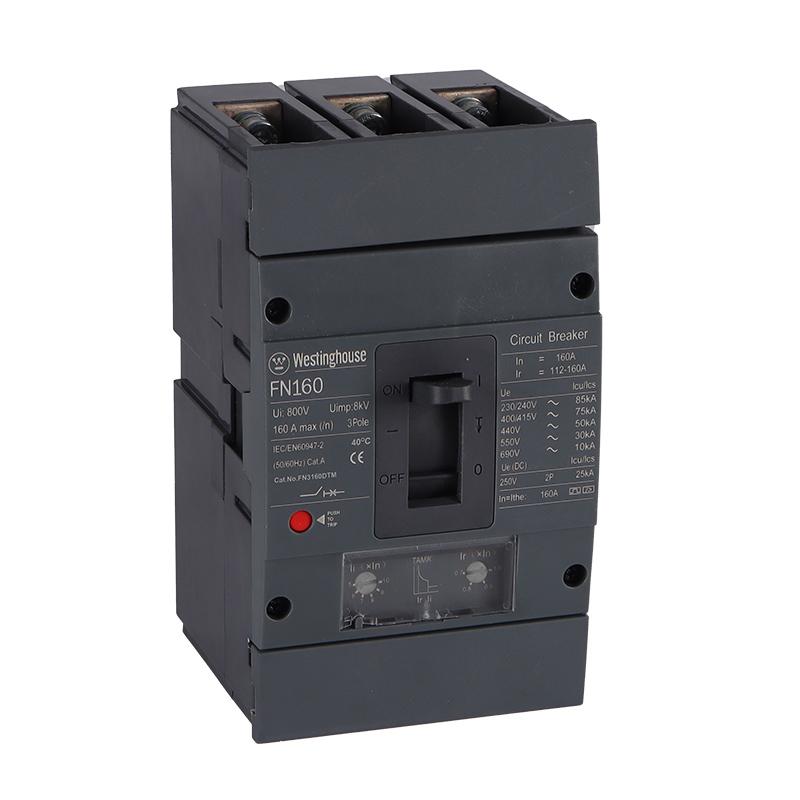

Frame Size F 160 Amps 55°C (HC Series)

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu = Ics 36/50/75 kA



Dimensions  H W D Weight Kgs
1 Pole 155 35 87 0.85
2 Pole 60 0.85
3 Pole 90 1.4
4 Pole 120 1.9

animation image

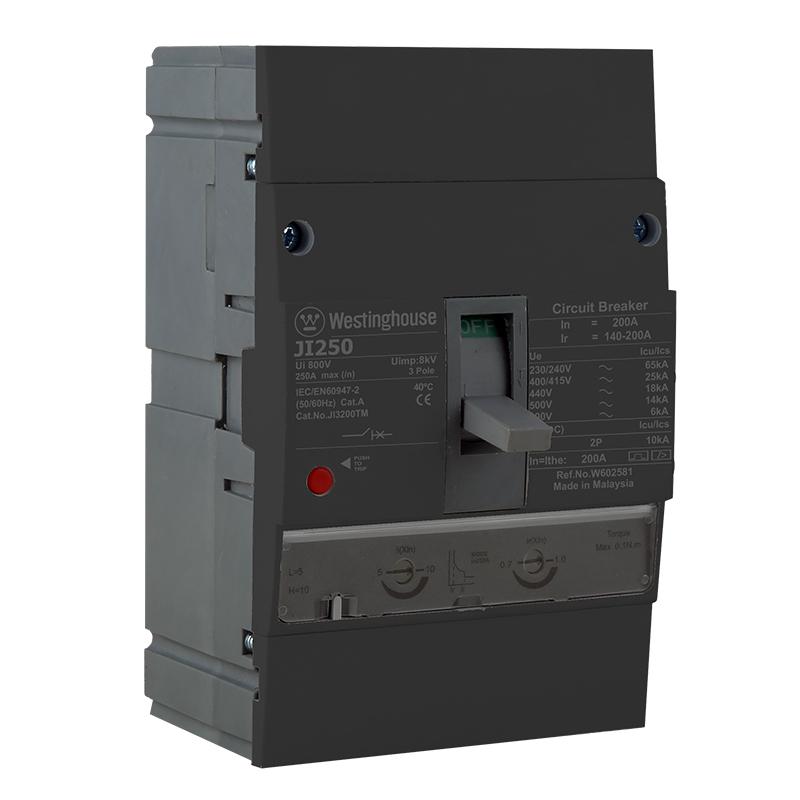

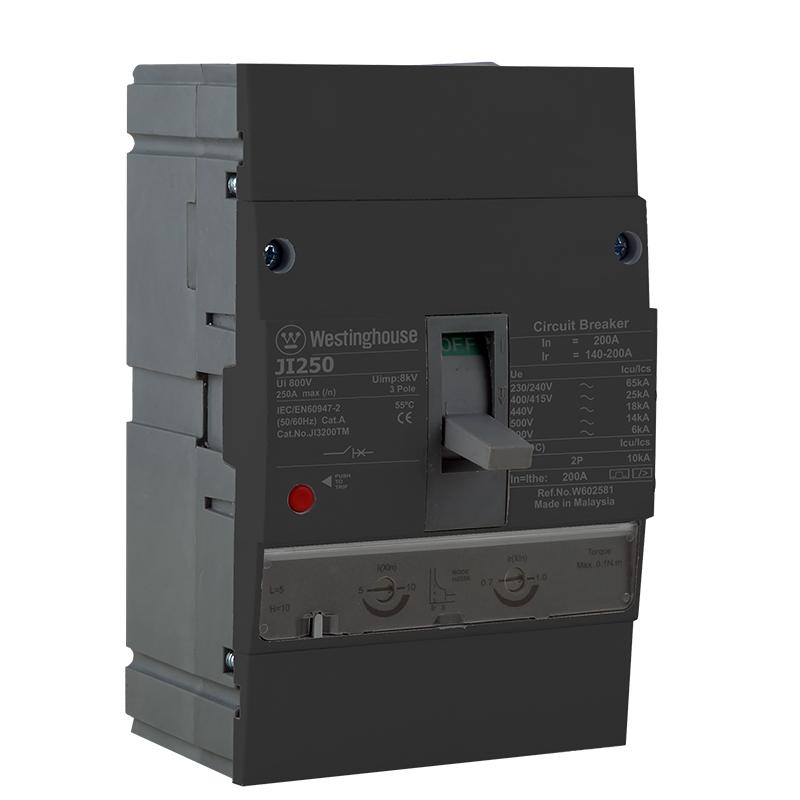

Frame Size Ji 250 Amps 55°C (HC Series)

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C, Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu = Ics 25kA



Dimensions  H W D Weight Kgs
3 Pole 165 105 87 1.8
4 Pole 140 2.4

animation image

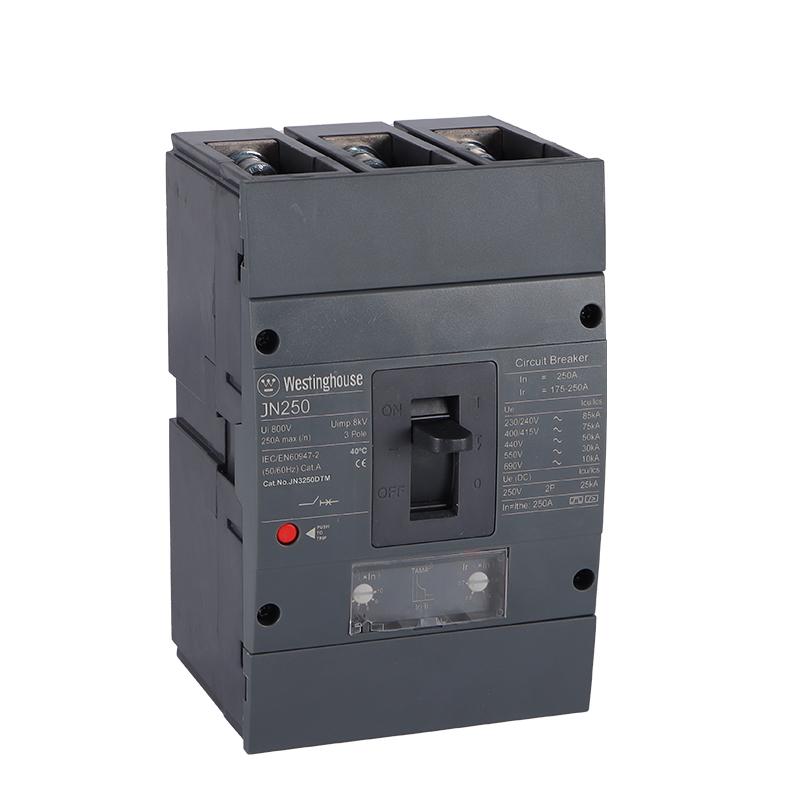

Frame Size J 250 Amps 55°C (HC Series)

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C, Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu = Ics 36/50/75kA



Dimensions  H W D Weight Kgs
3 Pole 165 105 87 1.8
4 Pole 140 2.4

animation image

Frame Size K 400 Amps 55°C (HC Series)

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage, 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu = Ics 36/50/100kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 108 4.1
4 Pole 184 5.6

animation image

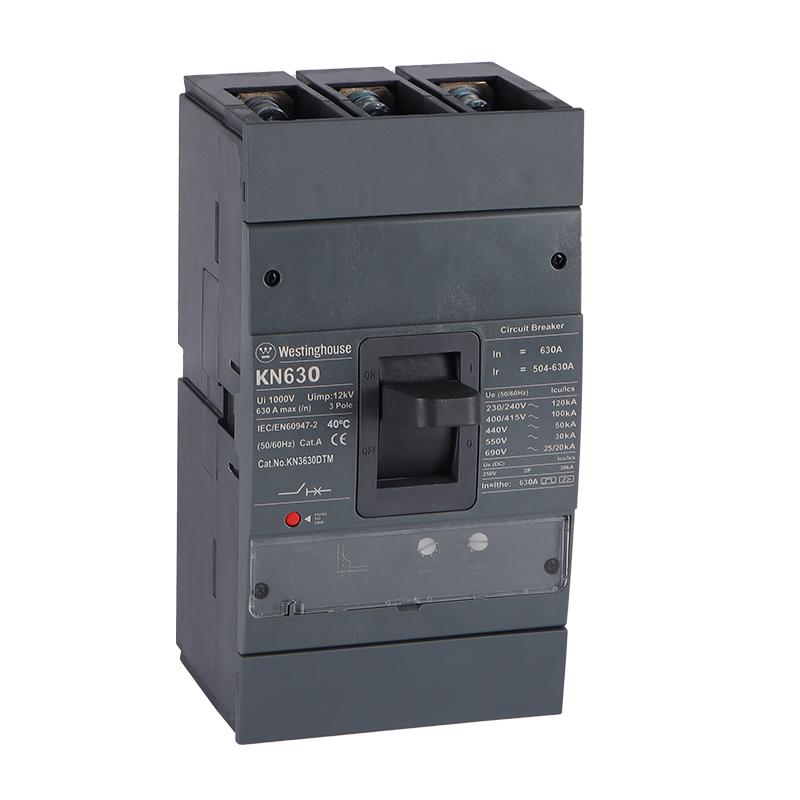

Frame Size K 630 Amps 55°C (HC Series)

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage, 240/415V, Frequency 50/60Hz.



Ue Maximum 415 V
Icu = Ics 36/50kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 108 4.3
4 Pole 185 5.8

animation image

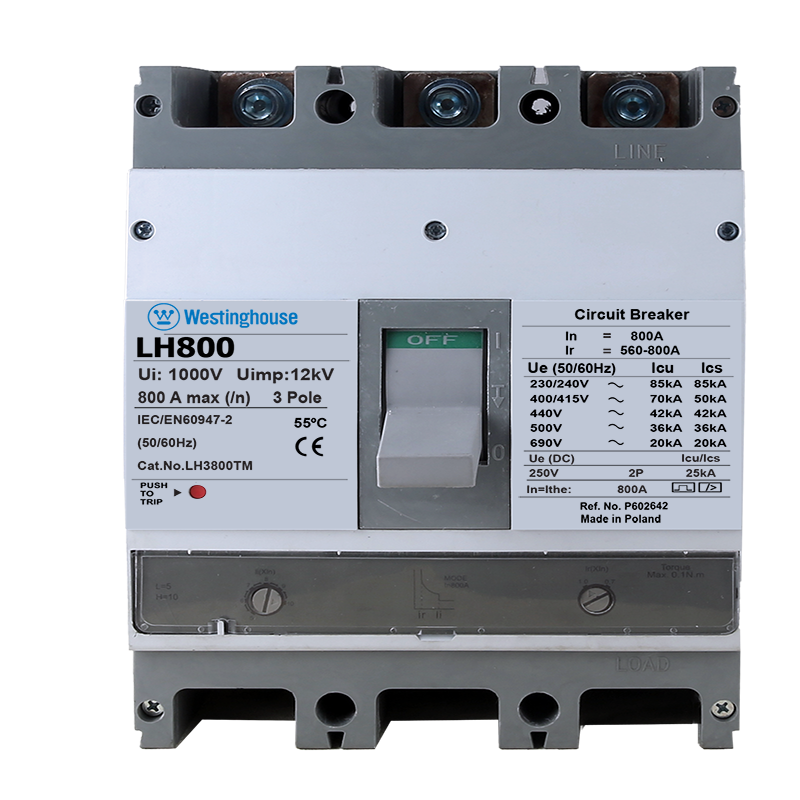

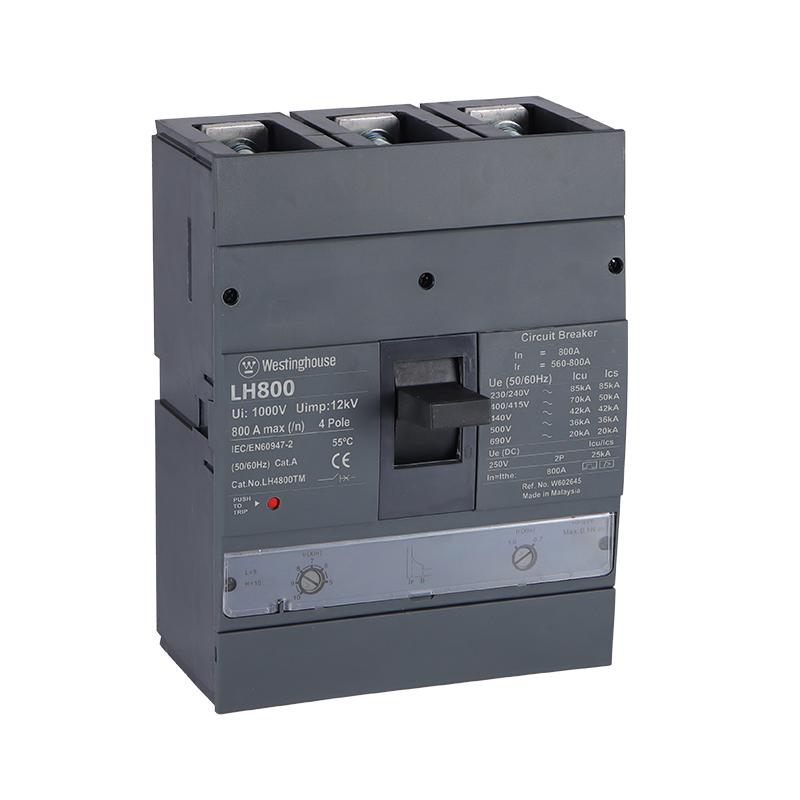

Frame Size L 800 Amps 55°C (HC Series)

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage, 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu 70kA
Ics 50kA



Dimensions  H W D Weight Kgs
3 Pole 275 210 114 9.5
4 Pole 280 12.5

animation image

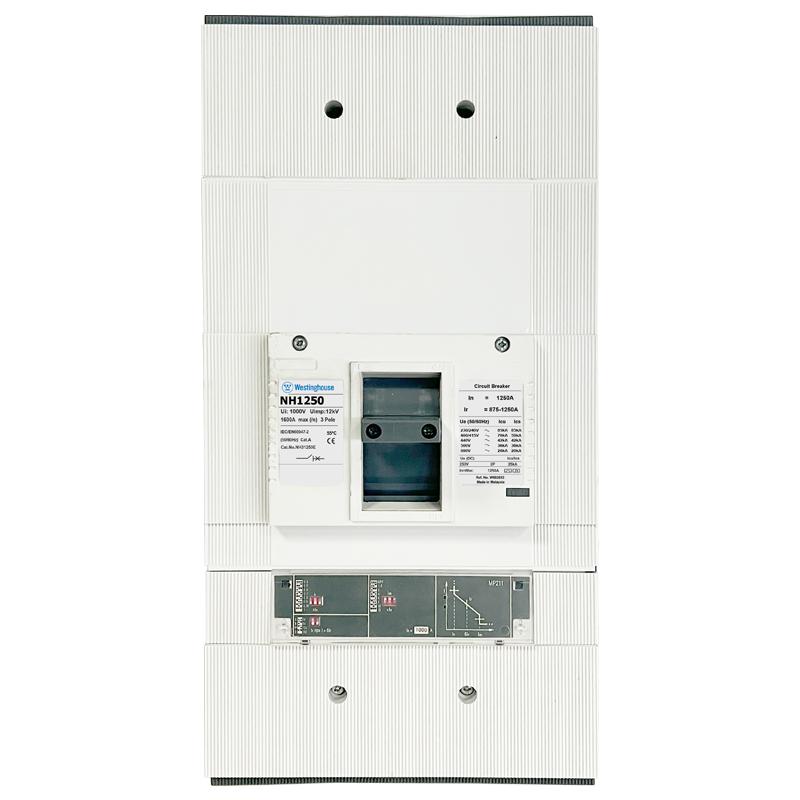

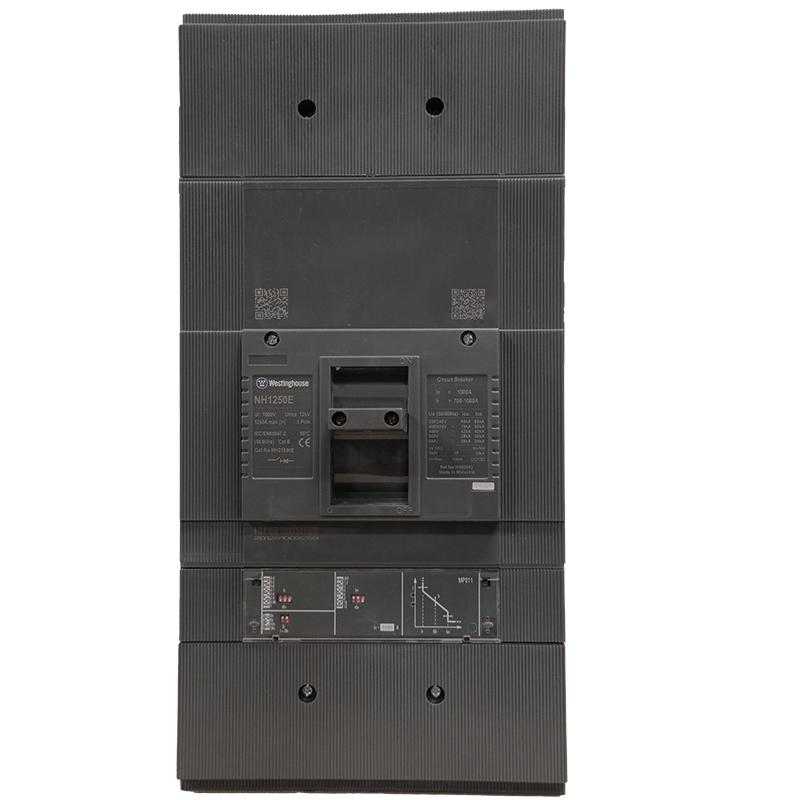

Frame Size N 1250 Amps 55°C (HC Series)

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C, Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu 70kA
Ics 50kA



Dimensions  H W D Weight Kgs
3 Pole 406 210 140 21.3
4 Pole 280 28.3

animation image
Download Datasheet

MCCB HC Series Curve

Download Datasheet

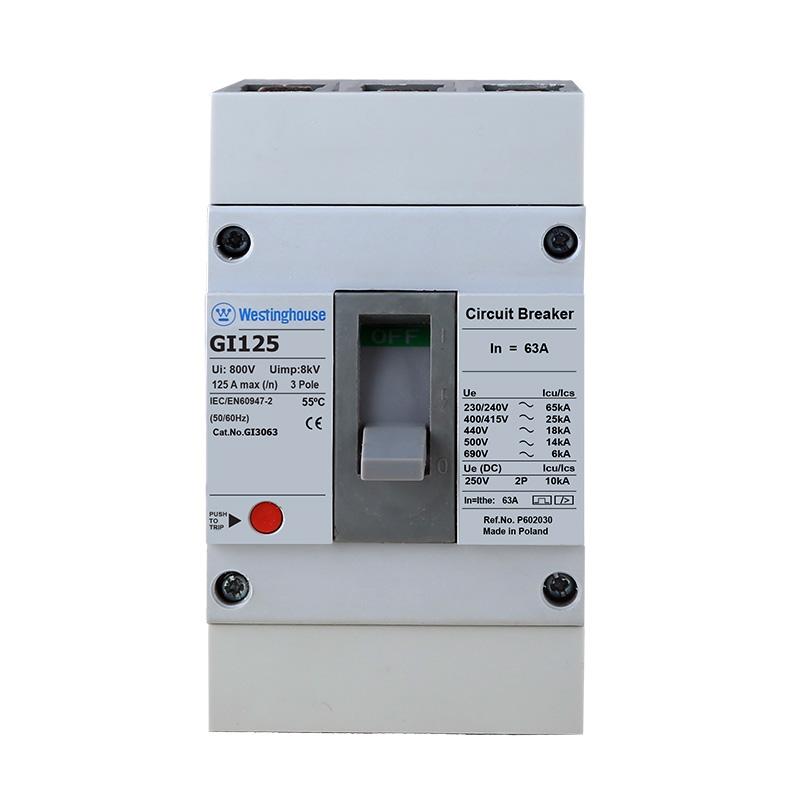

Frame Size G 125 Amps

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz.



Ue Maximum 415 V
Icu = Ics 18/25/36 kA



Dimensions  H W D Weight Kgs
1 Pole 130 25 76.8 0.3
2 Pole 50 0.5
3 Pole 75 0.7
4 Pole 100 0.9

animation image
Download Datasheet

Frame Size F 160 Amps

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu = Ics 25/36/50 kA



Dimensions  H W D Weight Kgs
1 Pole 155 35 76.7 0.85
2 Pole 70 0.85
3 Pole 90 1.2
4 Pole 120 1.6

animation image
Download Datasheet

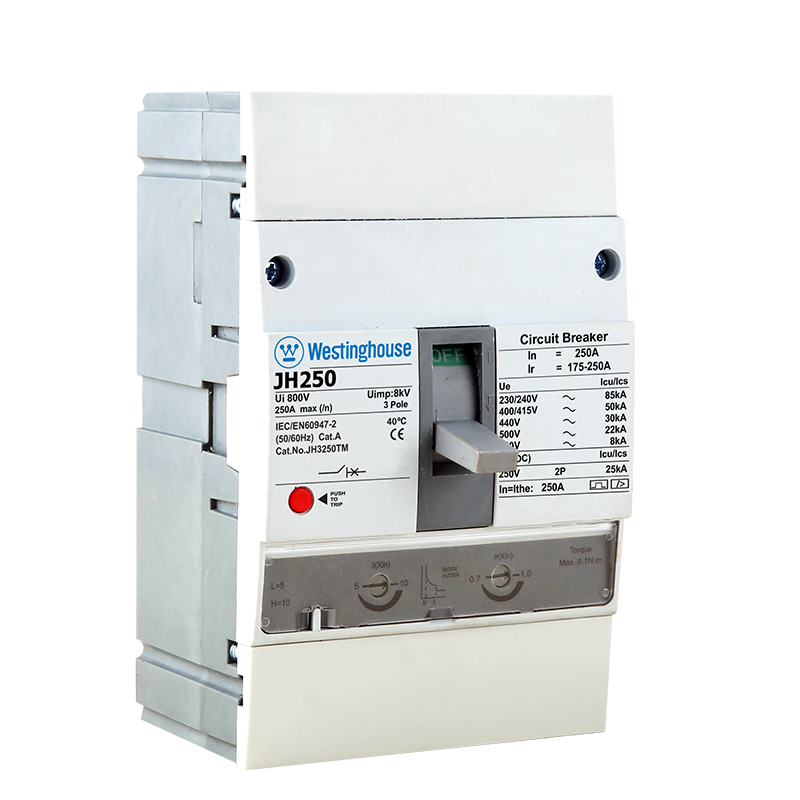

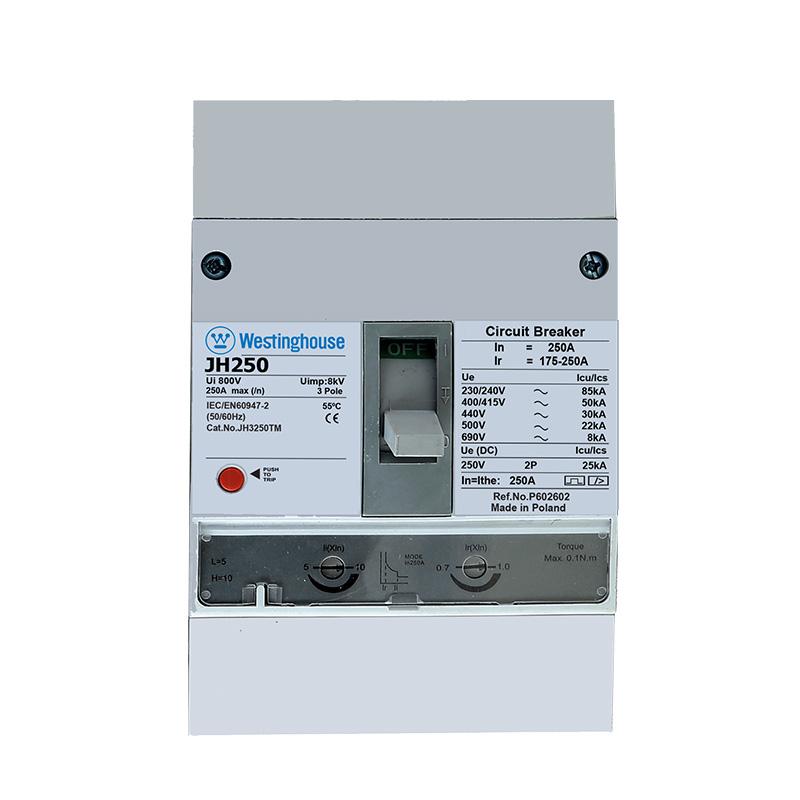

Frame Size J 250 Amps

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu = Ics 25/36/50kA



Dimensions  H W D Weight Kgs
3 Pole 165 105 77 1.5
4 Pole 140 2

animation image
Download Datasheet

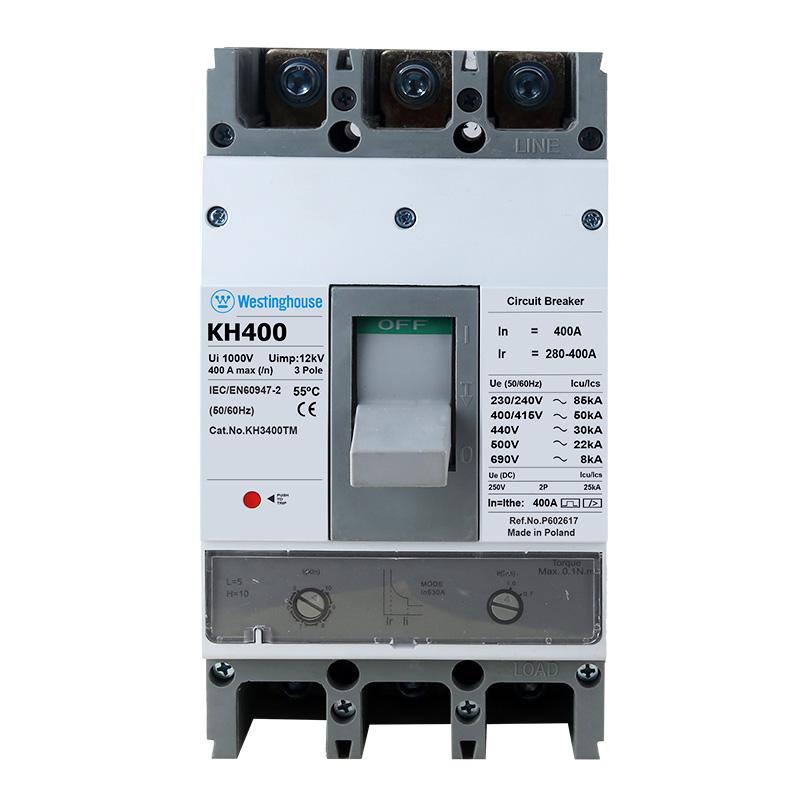

Frame Size K 400 Amps

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu = Ics 36/50kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 111.7 5.7
4 Pole 185 7.5

animation image
Download Datasheet

Frame Size K 630 Amps

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz.



Ue Maximum 415 V
Icu = Ics 36/50kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 111.7 5.7
4 Pole 185 7.5

animation image

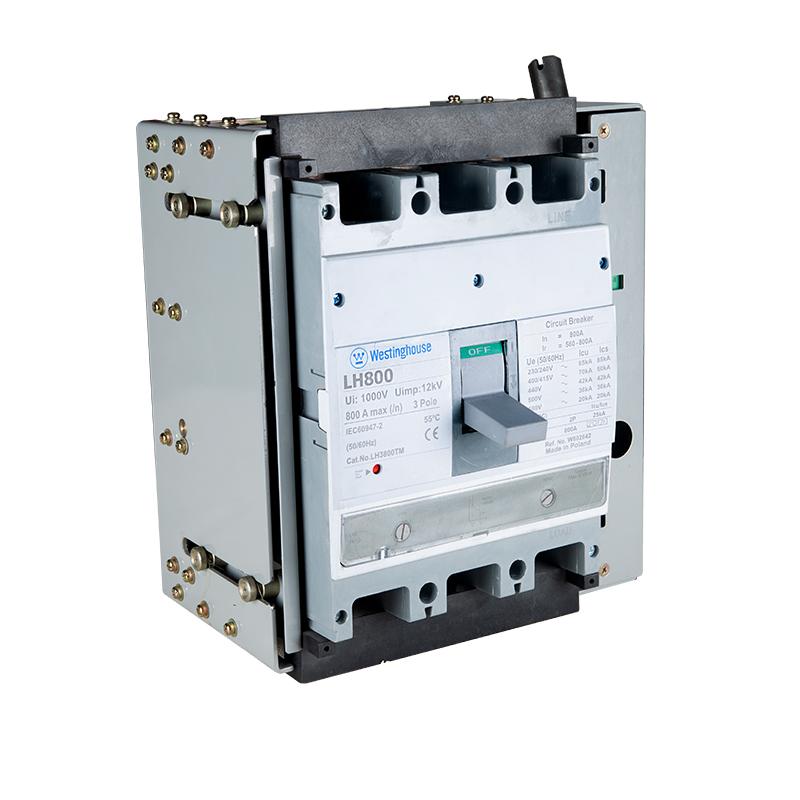

Frame Size L 800 Amps

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu 70kA
Ics 50kA



Dimensions  H W D Weight Kgs
3 Pole 275 210 112.2 9.5
4 Pole 280 12.5

animation image
Download Datasheet

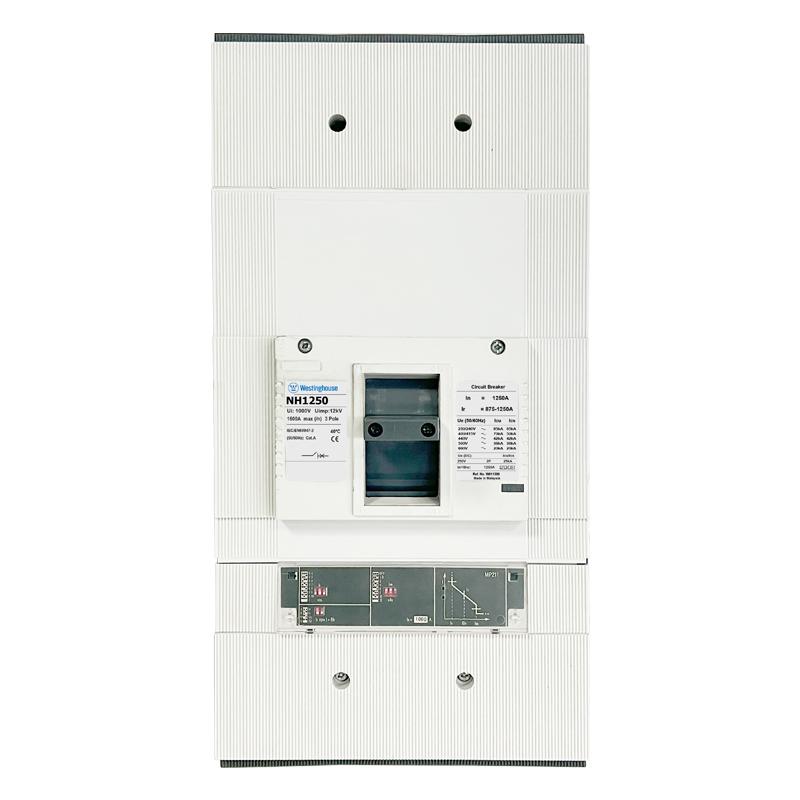

Frame Size N 1250 Amps

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu 70kA
Ics 50kA



Dimensions  H W D Weight Kgs
3 Pole 406 210 140 21.3
4 Pole 280 28.3

animation image
Download Datasheet

Frame Size G 125 Amps 40°C

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 40°C Voltage 240/415V, Frequency 50/60Hz.



Ue Maximum 415 V
Icu = Ics 18/25/36 kA



Dimensions  H W D Weight Kgs
1 Pole 130 25 76.8 0.3
2 Pole 50 0.5
3 Pole 75 0.7
4 Pole 100 0.9

animation image
Download Datasheet

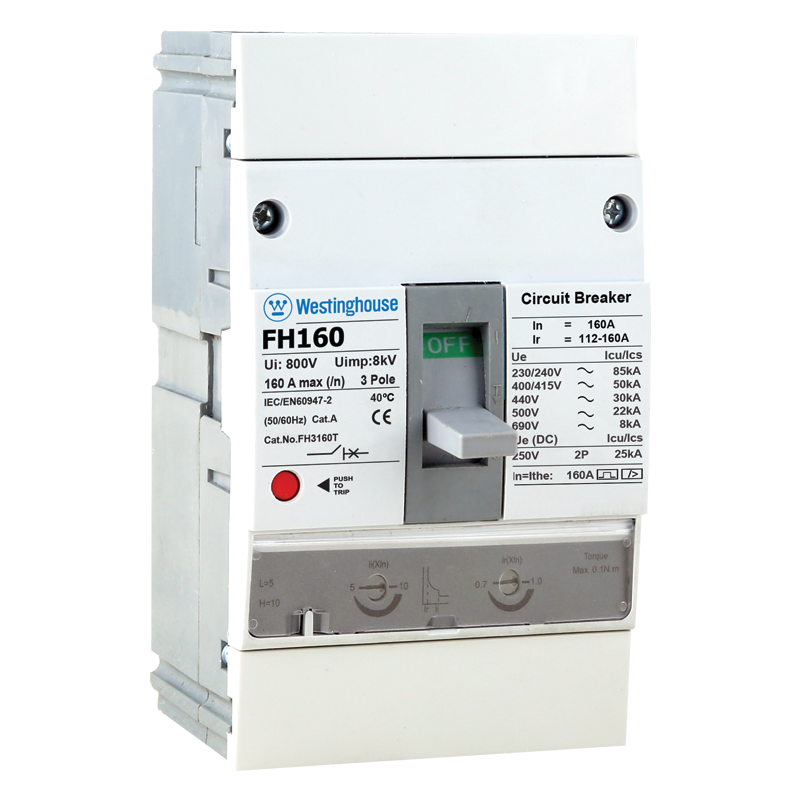

Frame Size F 160 Amps 40°C

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 40°C Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu = Ics 25/36/50 kA



Dimensions  H W D Weight Kgs
1 Pole 155 35 76.7 0.85
2 Pole 70 0.85
3 Pole 90 1.2
4 Pole 120 1.6

animation image
Download Datasheet

Frame Size J 250 Amps 40°C

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 40°C Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu = Ics 25/36/50kA



Dimensions  H W D Weight Kgs
3 Pole 165 105 87 1.5
4 Pole 140 2

animation image
Download Datasheet

Frame Size K 400 Amps 40°C

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 40°C Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu = Ics 36/50kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 111.7 5.7
4 Pole 185 7.5

animation image
Download Datasheet

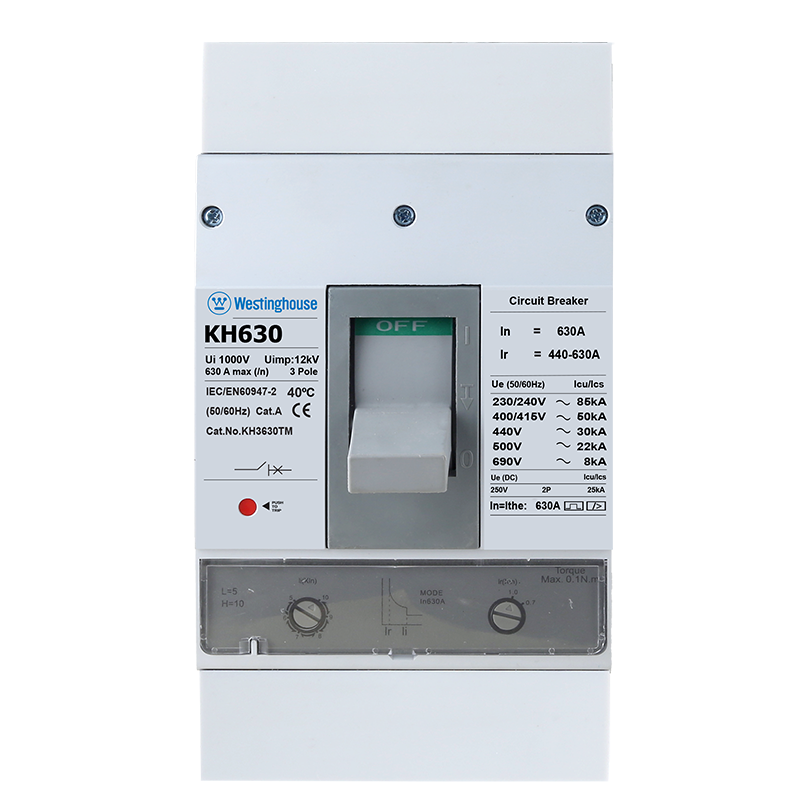

Frame Size K 630 Amps 40°C

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 40°C Voltage 240/415V, Frequency 50/60Hz.



Ue Maximum 415 V
Icu = Ics 36/50kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 111.7 5.7
4 Pole 185 7.5

animation image
Download Datasheet

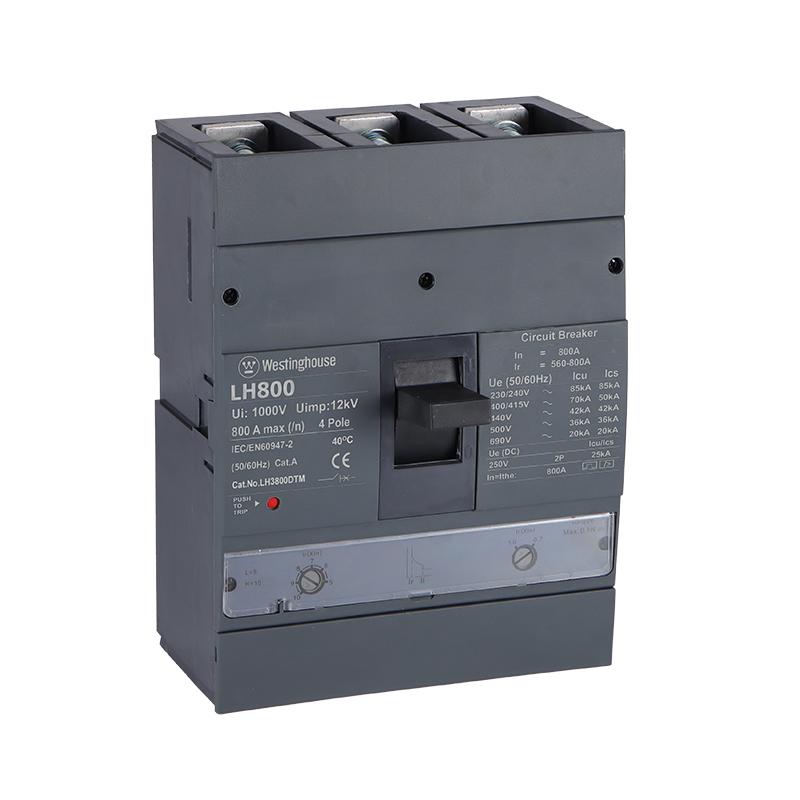

Frame Size L 800 Amps 40°C

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 40°C Voltage 240/415V, Frequency 50/60Hz



Ue Maximum 415 V
Icu 70kA
Ics 50kA



Dimensions  H W D Weight Kgs
3 Pole 275 210 112.2 9.5
4 Pole 280 12.5

animation image
Download Datasheet

Frame Size N 1250 Amps 40°C

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 40°C Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu 70kA
Ics 50kA



Dimensions  H W D Weight Kgs
3 Pole 406 210 140 21.3
4 Pole 280 28.3

animation image
Download Datasheet

MCCB Curves 55 DEG

Download Datasheet

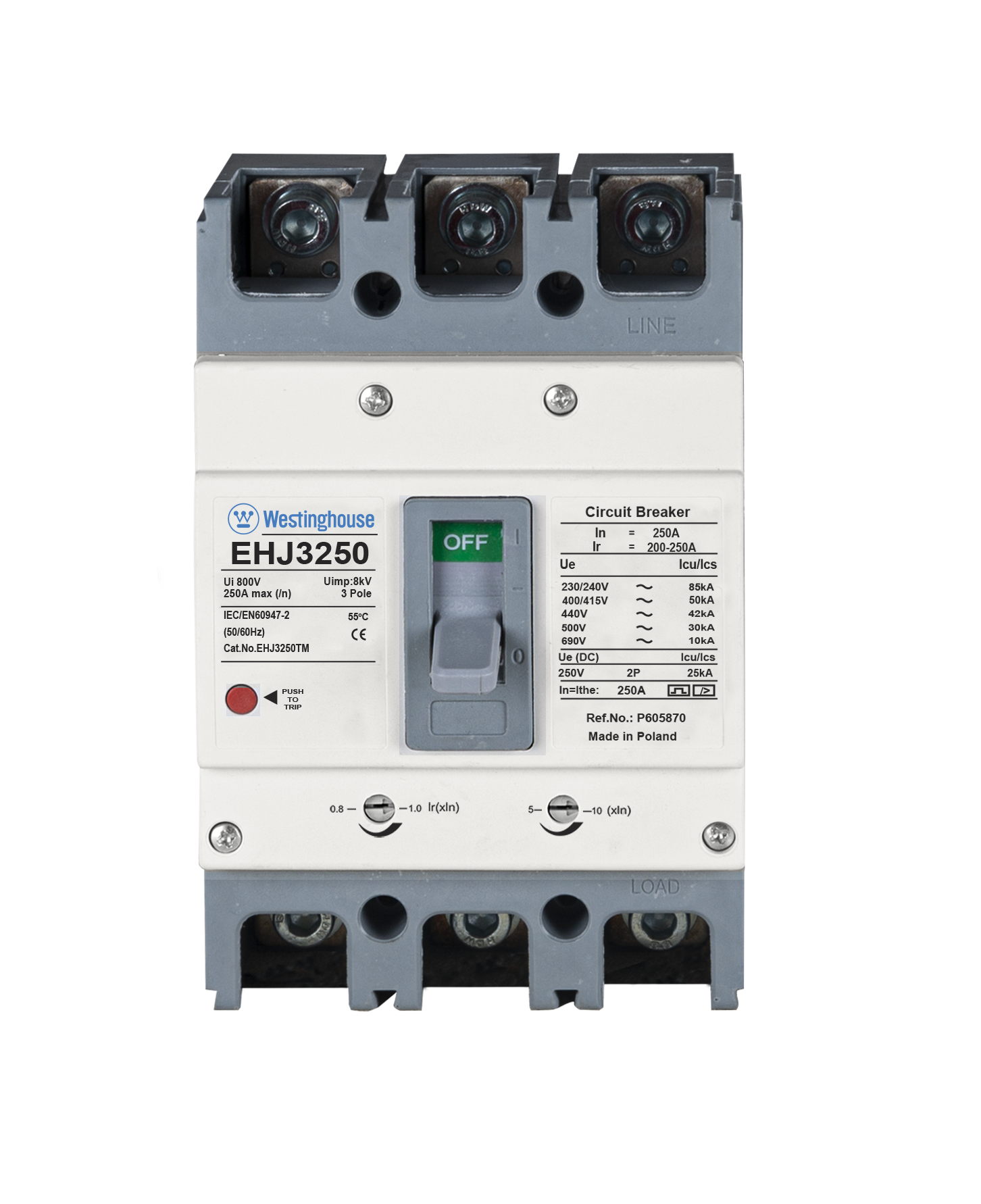

Frame Size EJ (100-250) Amperes

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C, Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu = Ics 25/36/50kA



Dimensions  H W D Weight Kgs
3 Pole 165 105 77 1.5
4 Pole 140 2

animation image
Download Datasheet

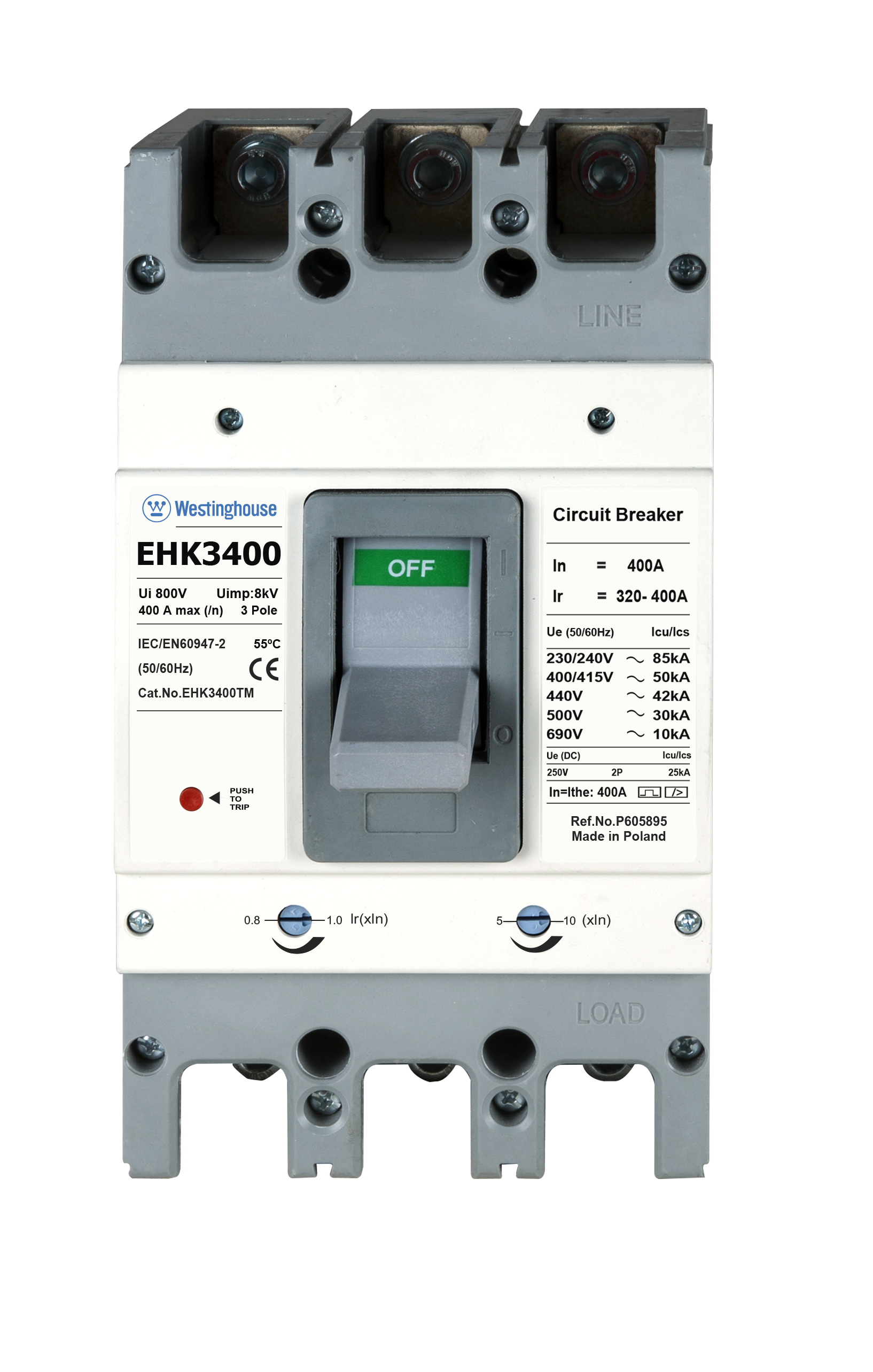

Frame Size EK (320-400) Amperes

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C, Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu = Ics 36/50kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 111.7 5.7
4 Pole 185 7.5

animation image
Download Datasheet

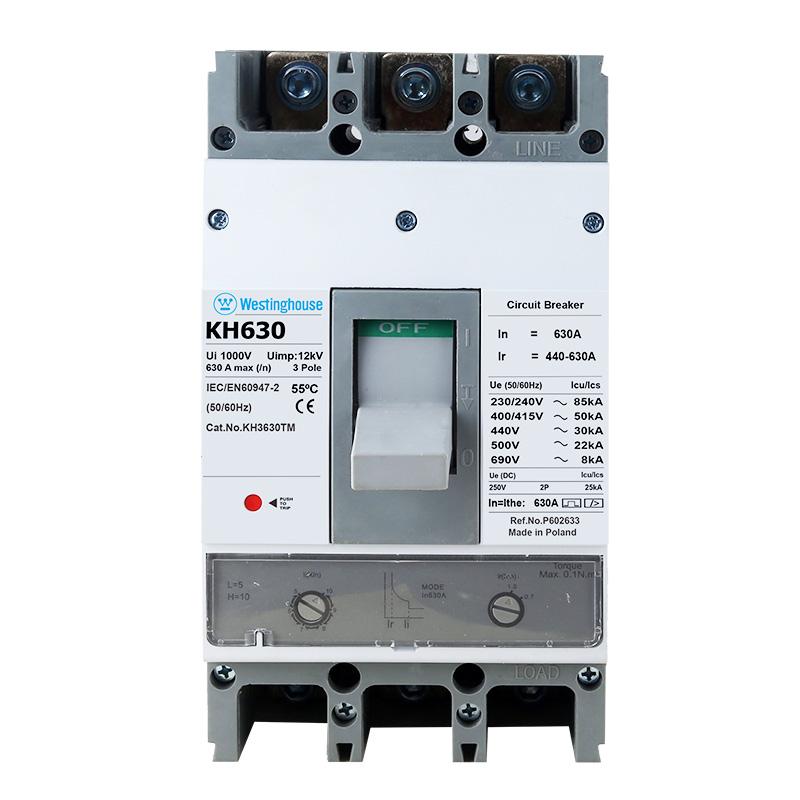

Frame Size EK (500-630) Amperes

IEC 60947-2

Feature

Complying to IEC 60947-2, Maximum continuous Ampere rating at 55°C, Voltage 240/415V, Frequency 50/60Hz,



Ue Maximum 415 V
Icu = Ics 36/50kA



Dimensions  H W D Weight Kgs
3 Pole 257 140 111.7 5.7
4 Pole 185 7.5

animation image
Download Datasheet

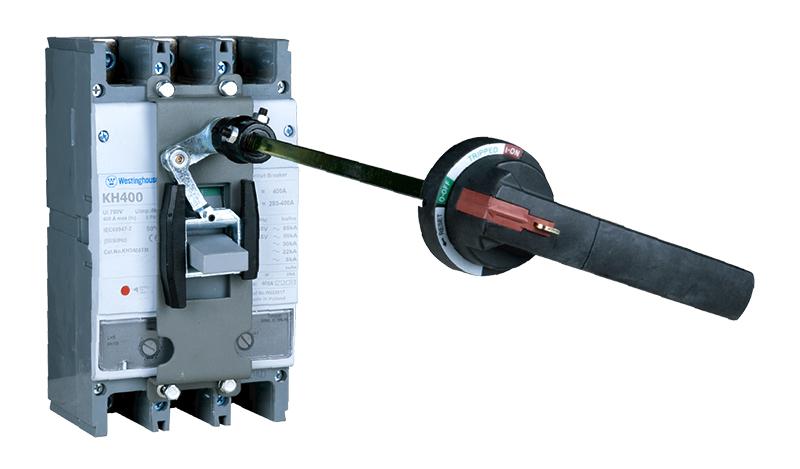

MCCB ACCESSORIES

Feature

There is a wide range of MCCB Accessories for the entire range of MCCB products and suitable for various situations.

animation image
animation image
