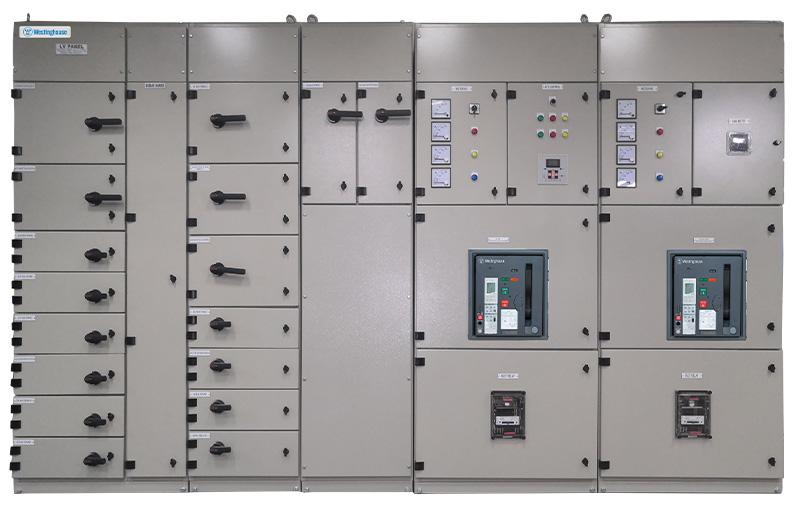

Main Distribution Board

Form 3 / form 4 series is a metal clad compartmentalized switchboard with each feeder units enclosed inside a separate metallic compartment.
These boards are available in various depths and heights to suit the individual project requirements.
Protection Class Up to IP – 54
Cubicles are made out of 2.0mm thick Electro-galvanized sheet steel as standard for outer covers and doors. 1mm thick sheet steel for internal partitions.
Busbar Chamber of 300mm height is provided at the Top or Bottom as per project specifications.
Removable Rear covers are provided.
Doors have Semi-concealed hinges and locks.
M 12 Lifting Eye Bolts are provided on top of each cubicle.
All cubicles are powder coated to RAL 7032 – Textured.
All doors are provided with gaskets for IP54 degree of protection.
