Low Voltage Systems & Solutions

Download Datasheet Download Complete Datasheet

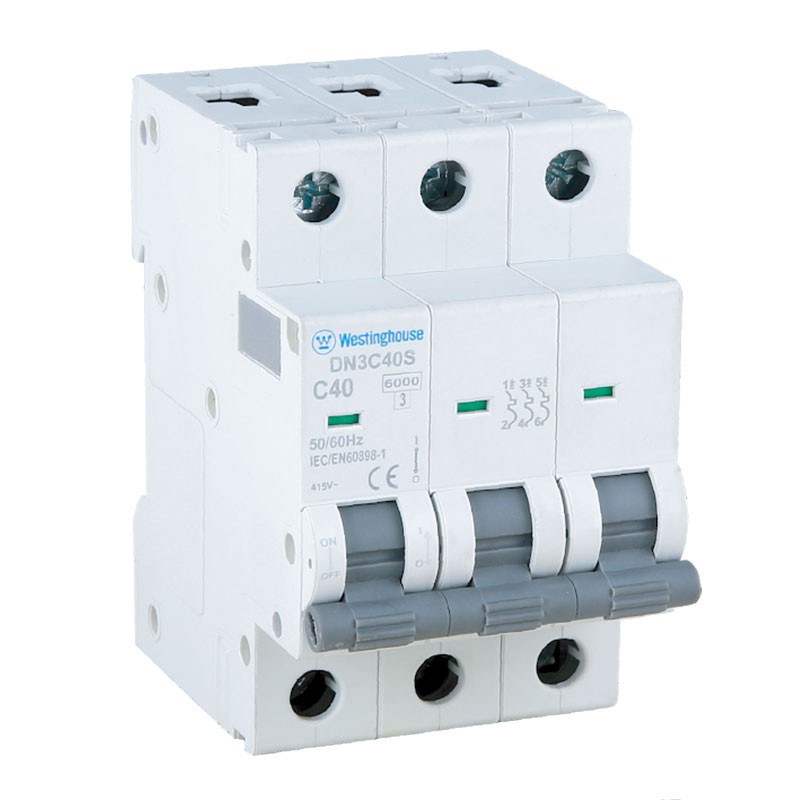

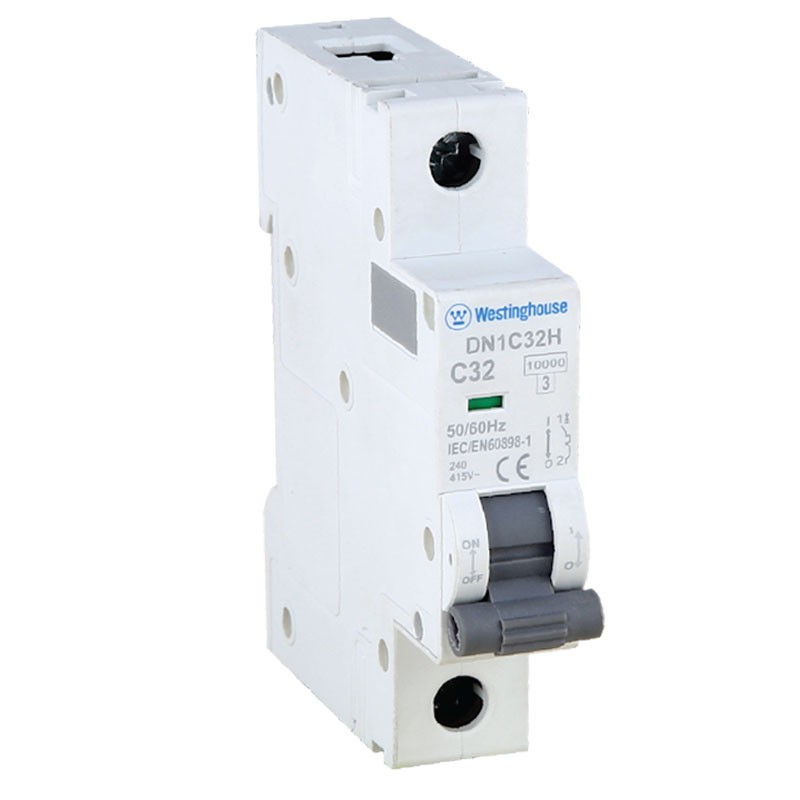

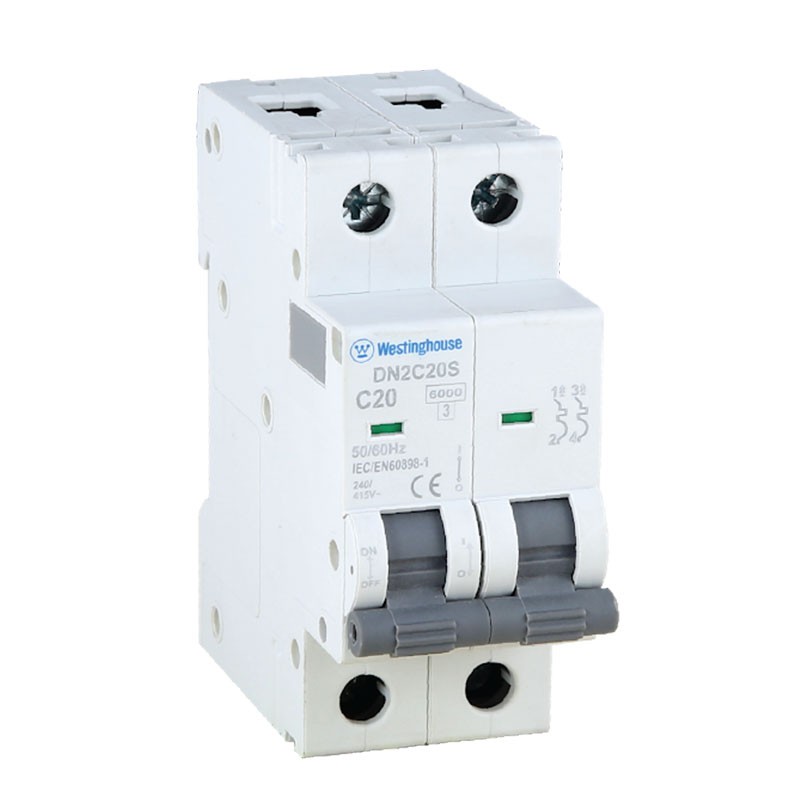

MCB TYPE DN

DIN-Rail IEC/EN 60898-1 Circuit Breakers 10kA,6kA or 4.5 kA (240V/415V)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

DN-MCBs are available with a breaking capacity of 10kA or 6kA or 4.5kA to IEC/EN 60898-1, Curve “C&B”. The MCB are calibrated to 40°C MCBs can be supplied with 50°C ambient calibration. Voltage 240/415V, Frequency 50/60Hz.

Protection and control of circuits against overloads & short circuits for domestic and industrial installations.

Rating from 6A to 63A 1P, 2P, 3P and 4P.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

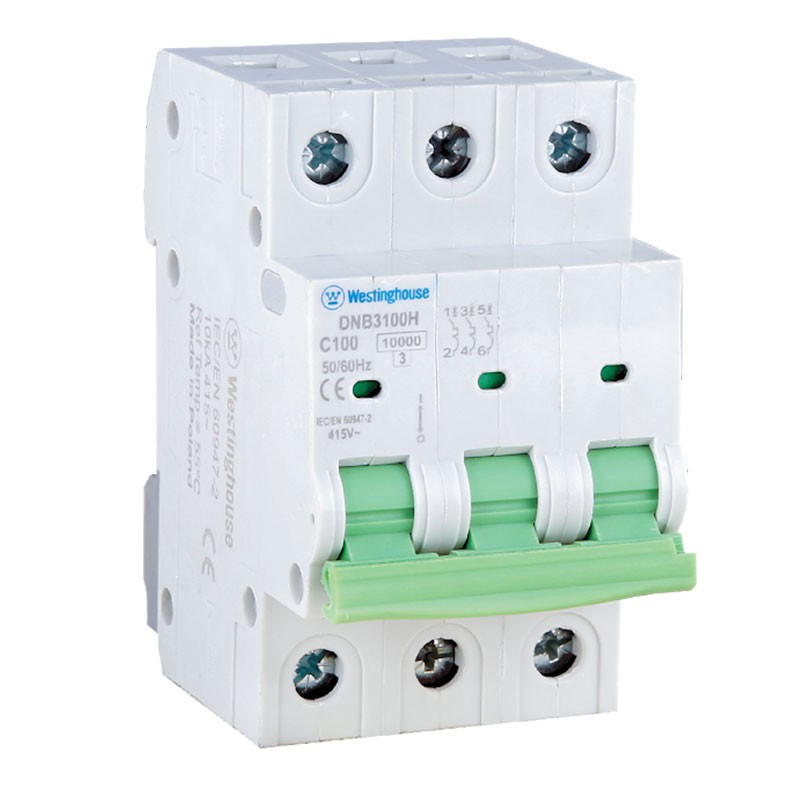

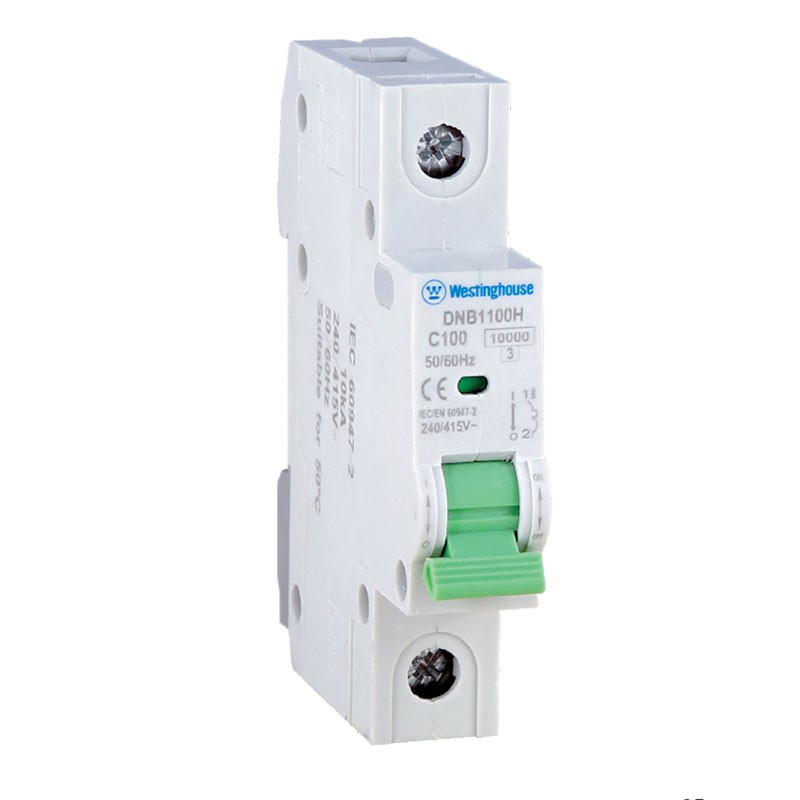

MCB TYPE DNB

DIN-Rail IEC/EN 60947-2 Circuit Breakers 10kA, IEC/EN 60898-1 6kA (240V/415V)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

DNB-MCBs are available with a breaking capacity of IEC/EN 60947-2 10kA, IEC/EN 60898-1 6kA. The MCB are calibrated to 40°C MCBs can be supplied with 50°C ambient calibration. Voltage 240/415V, Frequency 50/60Hz.

Protection and control of circuits against overloads & short circuits for domestic and industrial installations.

Rating from 63A to 125A 1P, 2P, 3P and 4P.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

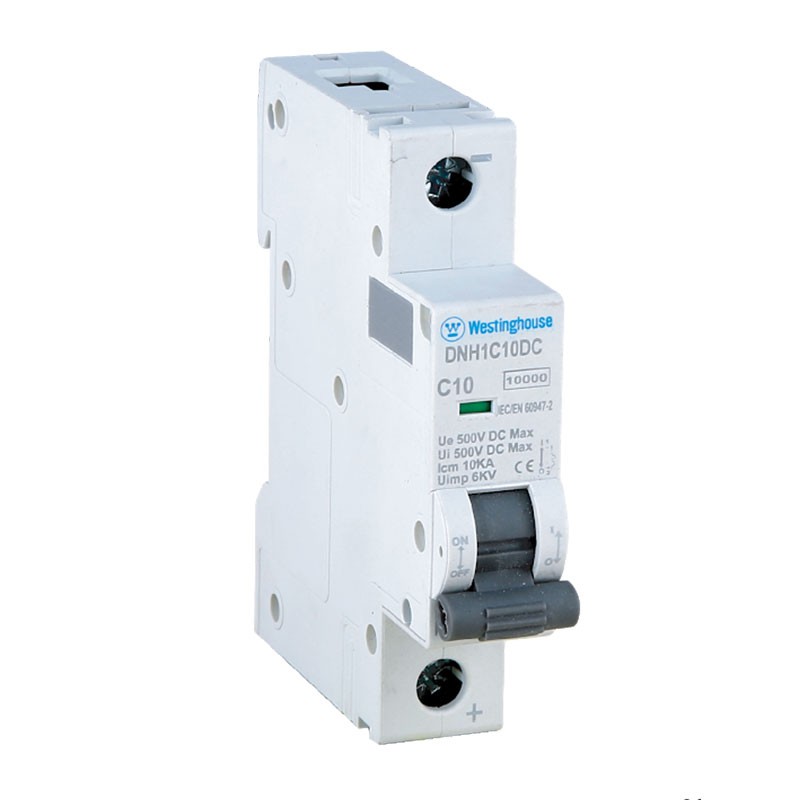

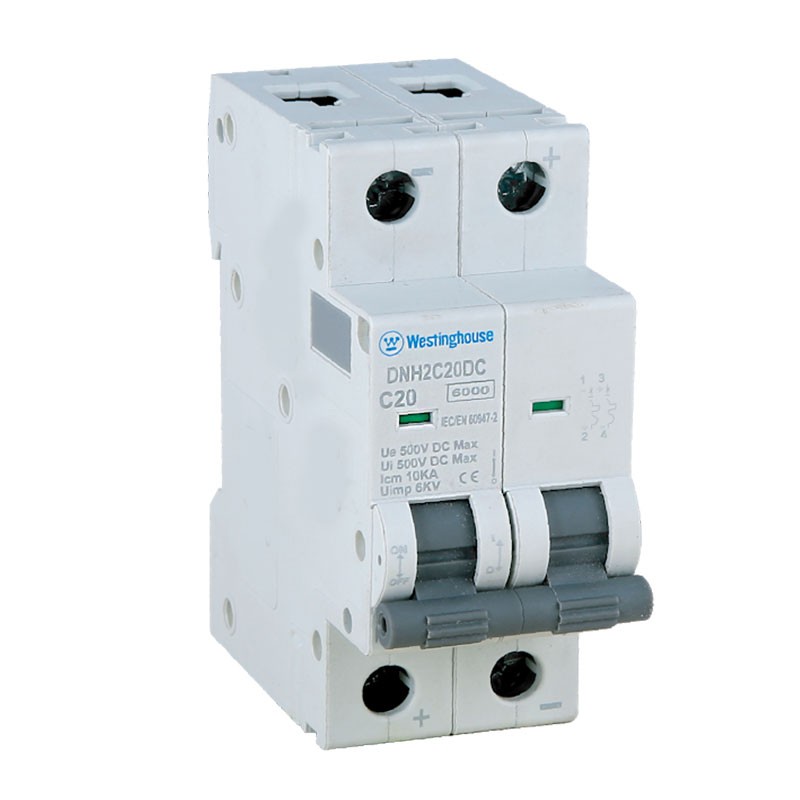

DC MCB TYPE DNH

DIN-Rail IEC/EN 60947-2 Circuit Breakers 10kA,

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

Function and Feature Used to DC protection switchboard in PV system,comply with IEC60947-2 Support maximum system voltage up to 1000VDC Short circuit and overload and surge protection. Protection and control of circuits against overloads & short circuits for domestic and industrial installations.

Rating from 1A to 63A 1P, 2P, 3P and 4P.

Download Datasheet Download Complete Datasheet

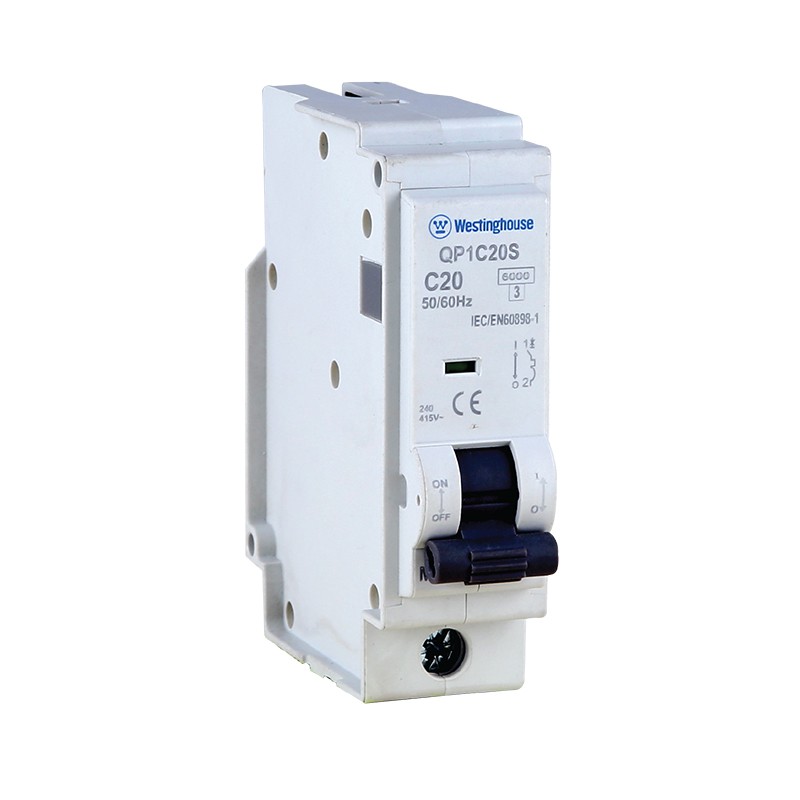

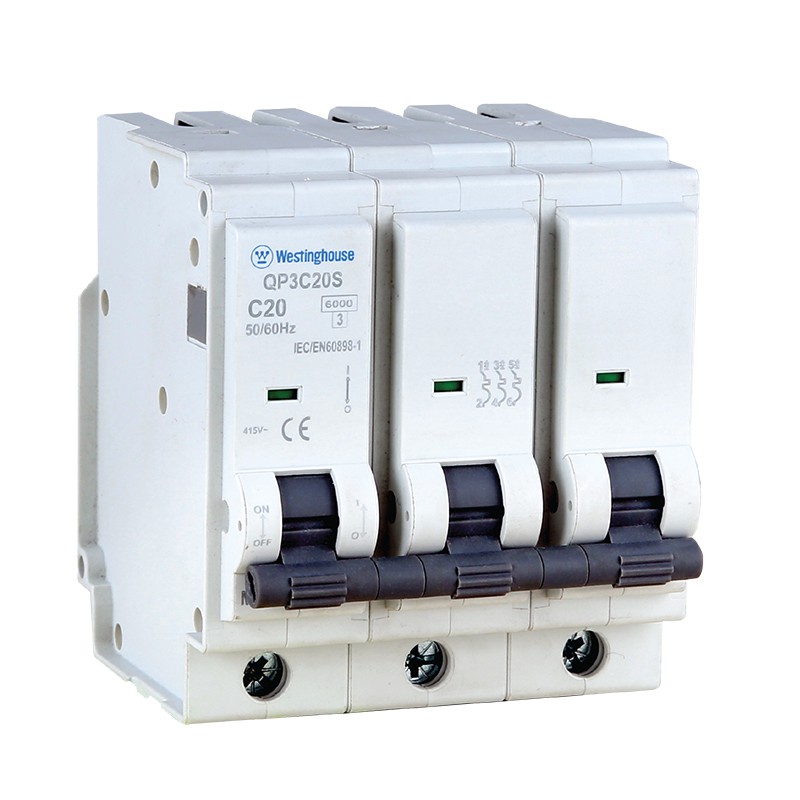

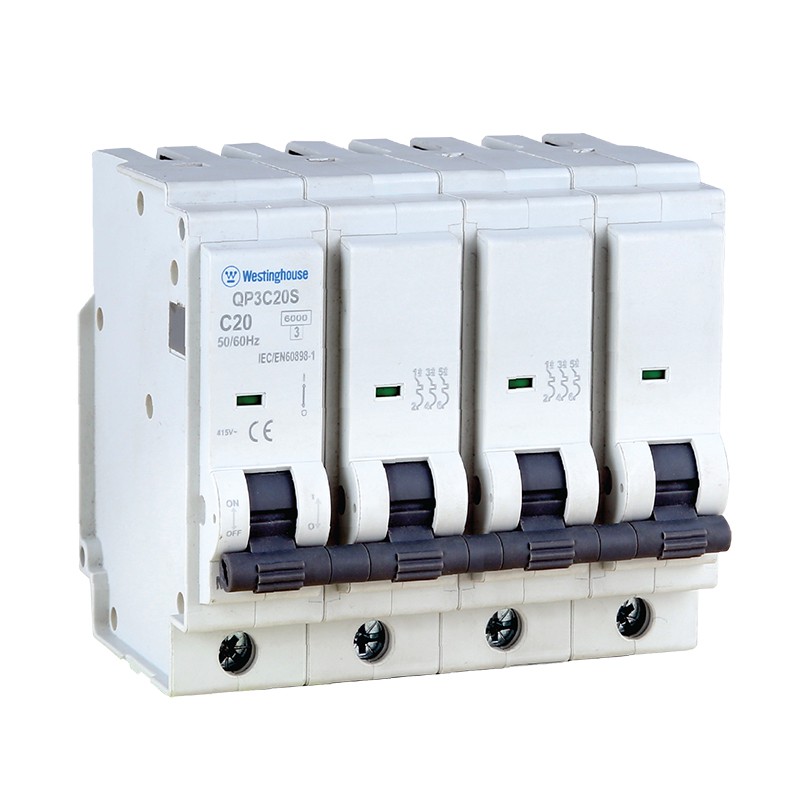

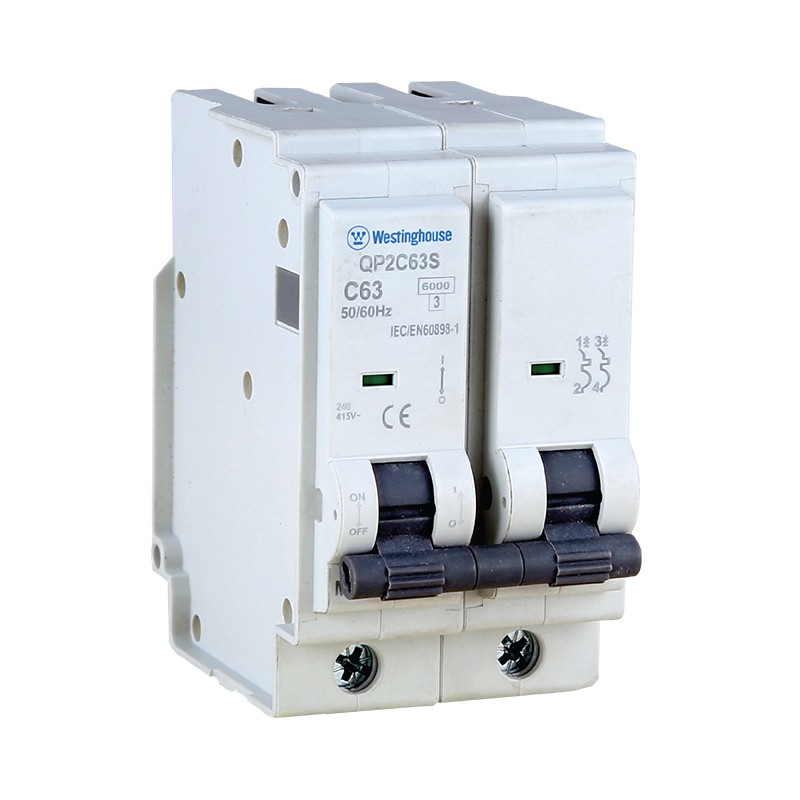

MCB Type QP

Plug-in IEC/EN 60898-1 Circuit Breakers 10kA & 6kA (240V/415V)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

QP-MCBs are available with a breaking capacity of 10 kA or 6 kA Curve “C&B” to IEC/EN 60898-1 The MCB are calibrated to 40°C , MCBs can be supplied with 50°C ambient calibration, Voltage 240/415V, Frequency 50/60Hz. Protection and control of circuits against overloads & short circuits for domestic and industrial installations.

Rating from 6A to 125A 1P, 2P, 3P and 4P.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

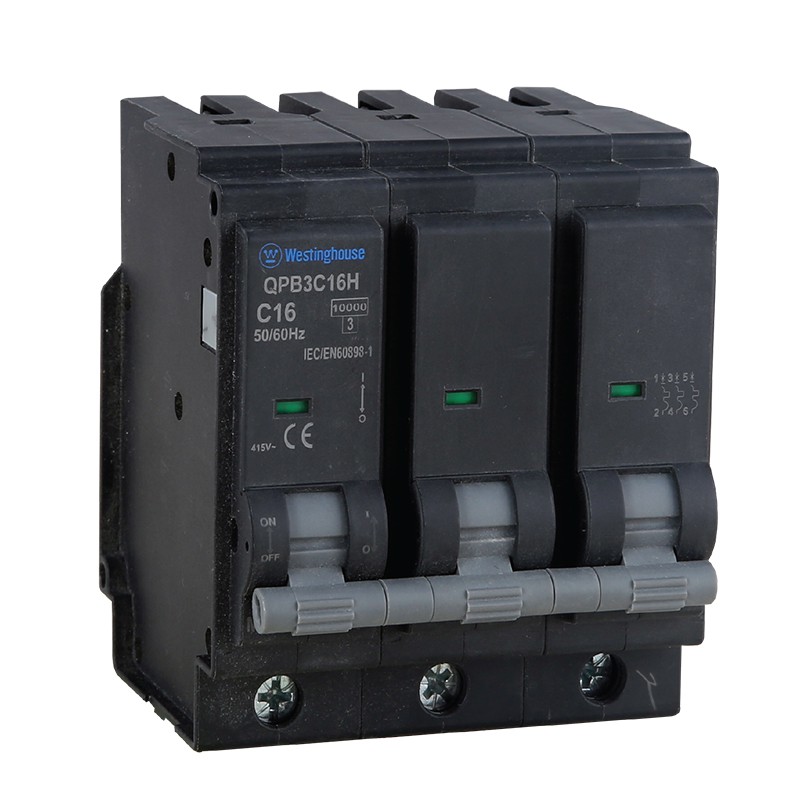

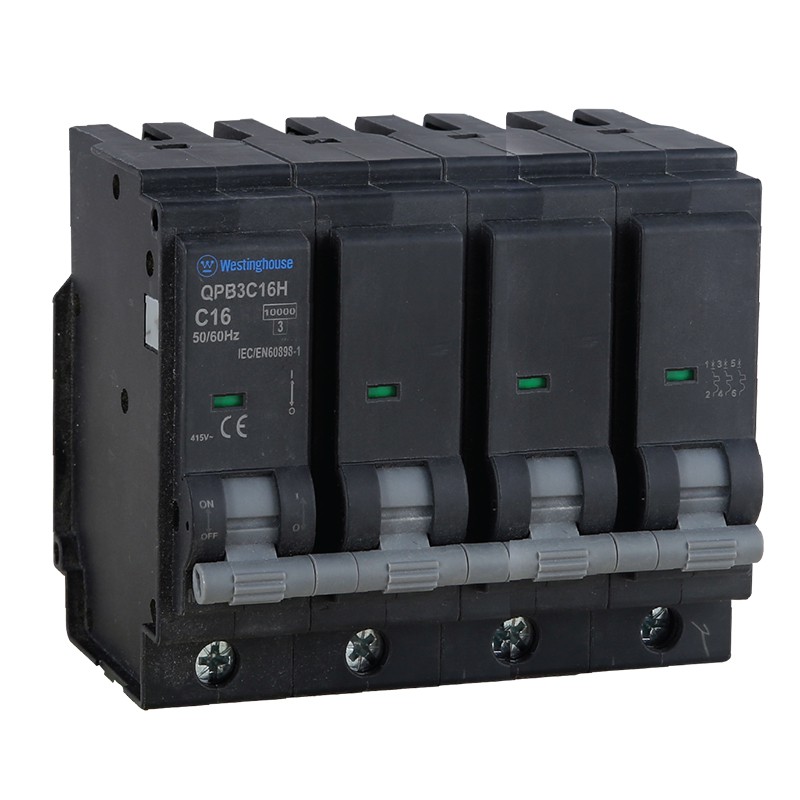

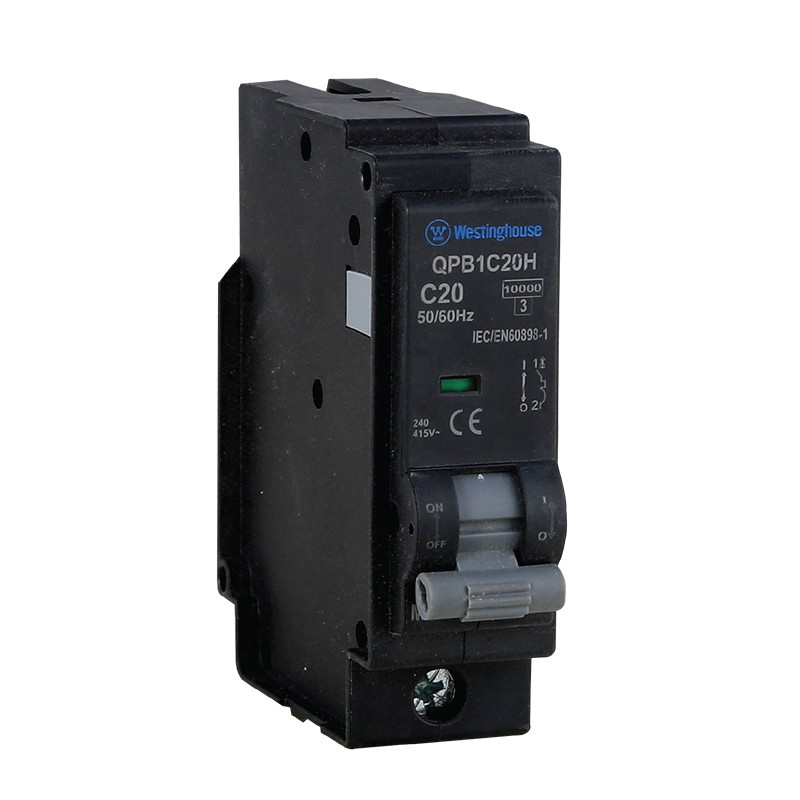

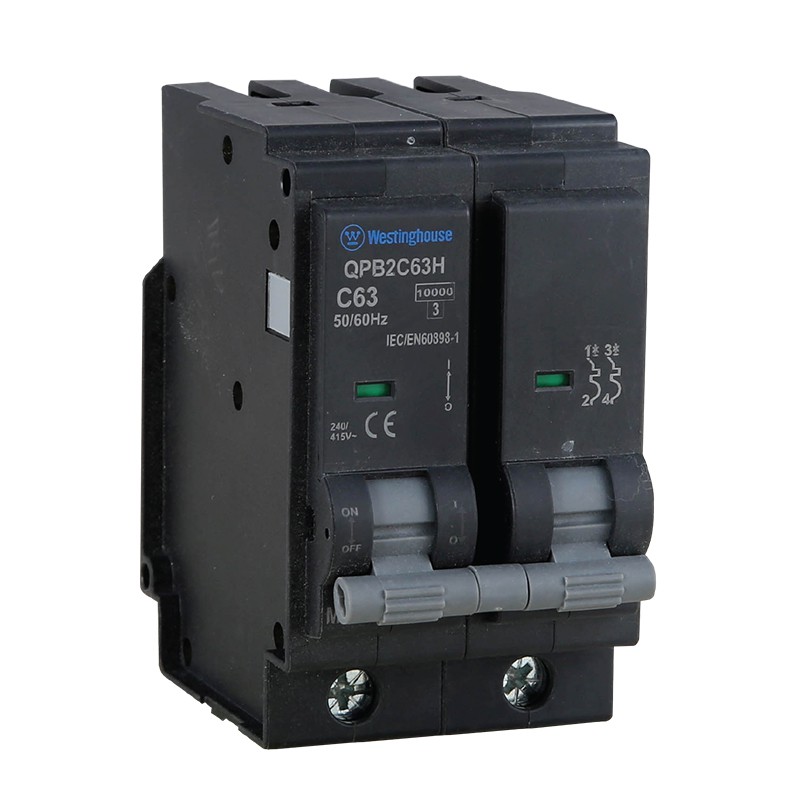

MCB Type QPB

Plug-in IEC/EN 60898-1 Circuit Breakers 10kA & 6kA (240V/415V)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

QPB-MCBs are available with a breaking capacity of 10 kA or 6 kA Curve “C&B” to IEC/EN 60898-1 The MCB are calibrated to 40°C , MCBs can be supplied with 50°C ambient calibration. Voltage 240/415V, Frequency 50/60Hz. Protection and control of circuits against overloads & short circuits for domestic and industrial installations.

Rating from 6A to 63A 1P, 2P, 3P and 4P.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

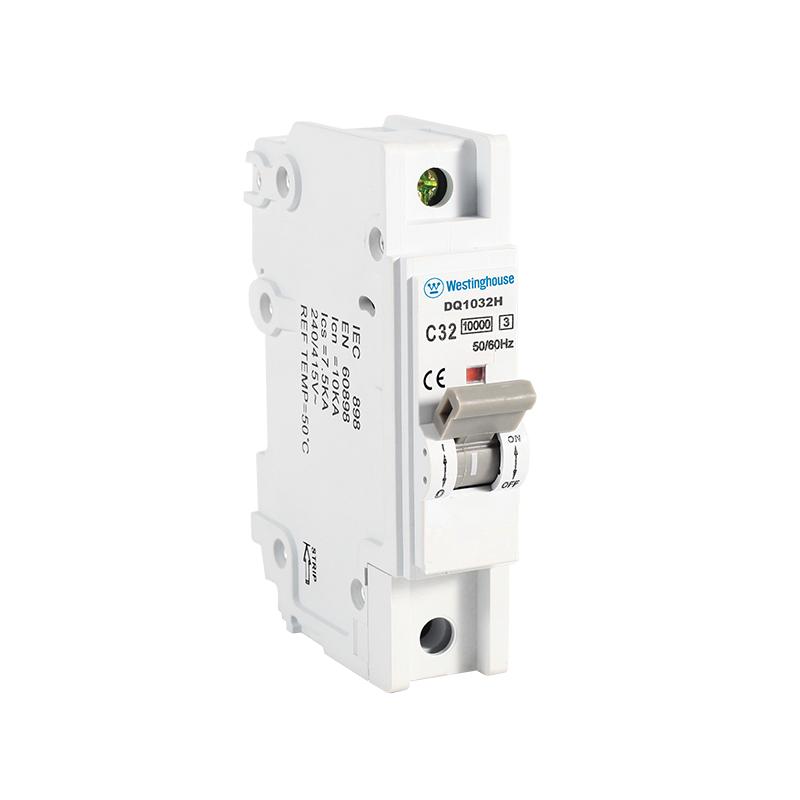

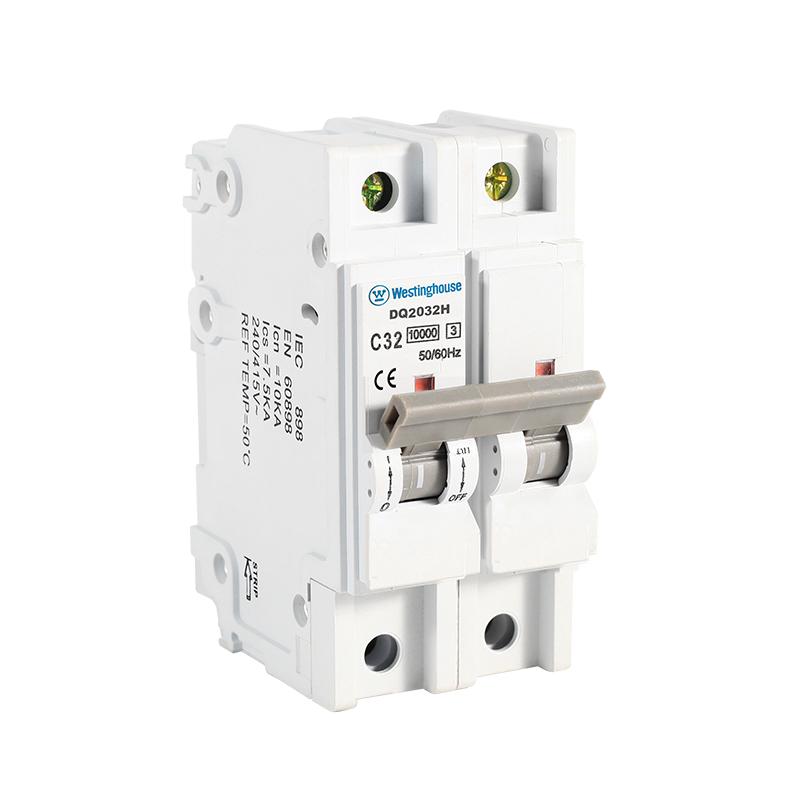

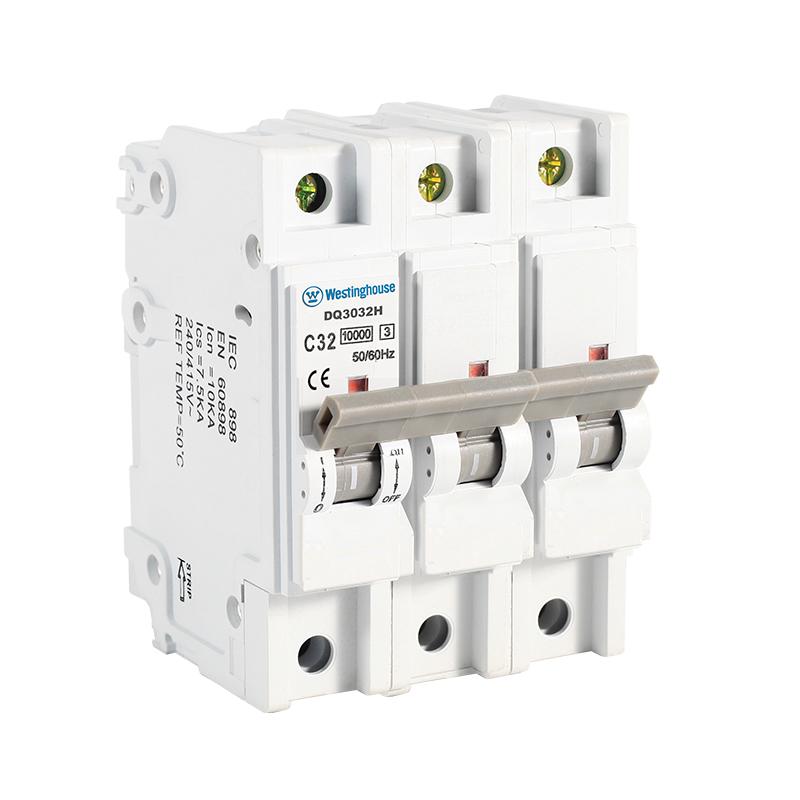

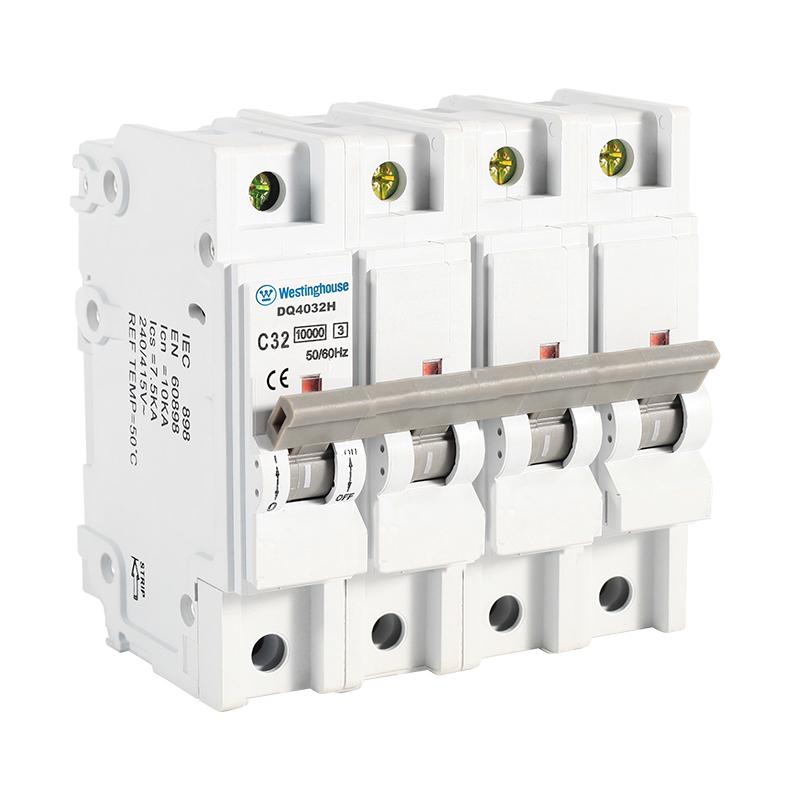

MCB Type DQ

Cable in / Cable out IEC/EN 60898-1 Circuit Breakers 10kA & 6kA (240V/415V)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

DQ-MCBs are available with a breaking capacity of10kA or 6kA Curve “C&B” to IEC/EN 60898-1, The MCB are calibrated to 40°C MCBs can be supplied with 50°C ambient calibration. Voltage 240/415V, Frequency 50/60Hz. Protection and control of circuits against overloads & short circuits for domestic and industrial installations.

Rating from 6A to 63A 1P, 2P, 3P and 4P.

Ratings below 6Amp. available on request

Download Datasheet Download Complete Datasheet

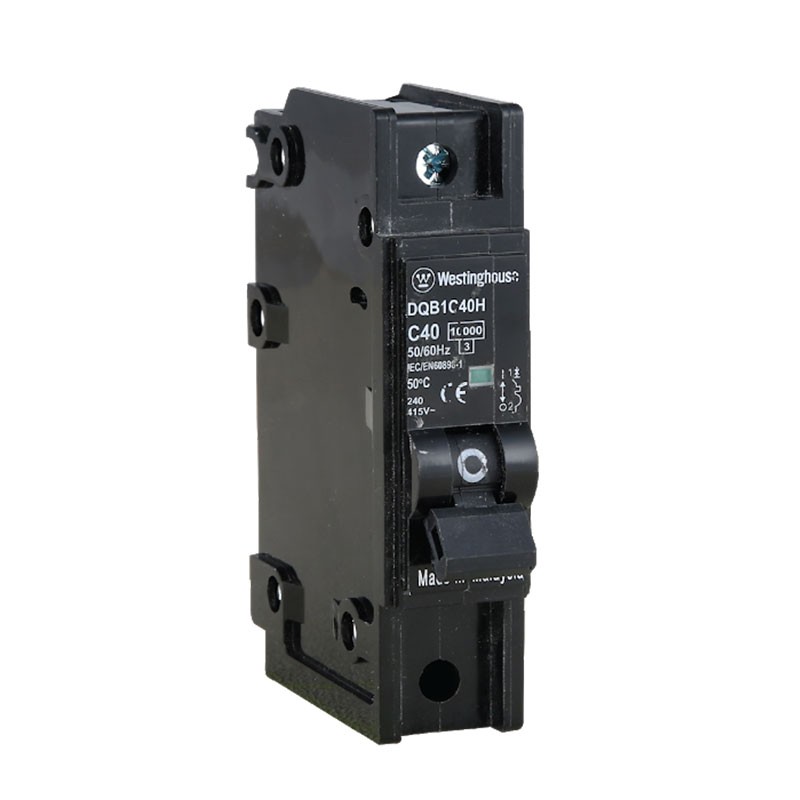

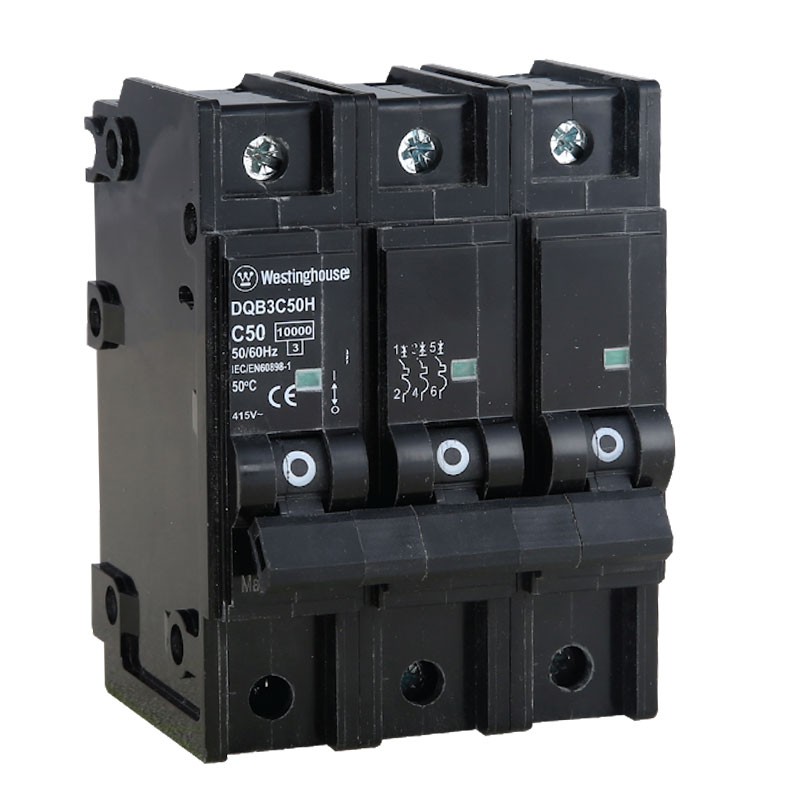

MCB Type DQB

Cable in / Cable out IEC/EN 60898-1 Circuit Breakers 10kA & 6kA (240V/415V)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

DQB-MCBs are available with a breaking capacity of10kA or 6kA Curve “C&B” to IEC/EN 60898-1, The MCB are calibrated to 40°C MCBs can be supplied with 50°C ambient calibration. Voltage 240/415V, Frequency 50/60Hz. Protection and control of circuits against overloads & short circuits for domestic and industrial installations.

Rating from 6A to 63A 1P, 2P, 3P and 4P.

Ratings below 6Amp. available on request

Download Datasheet Download Complete Datasheet

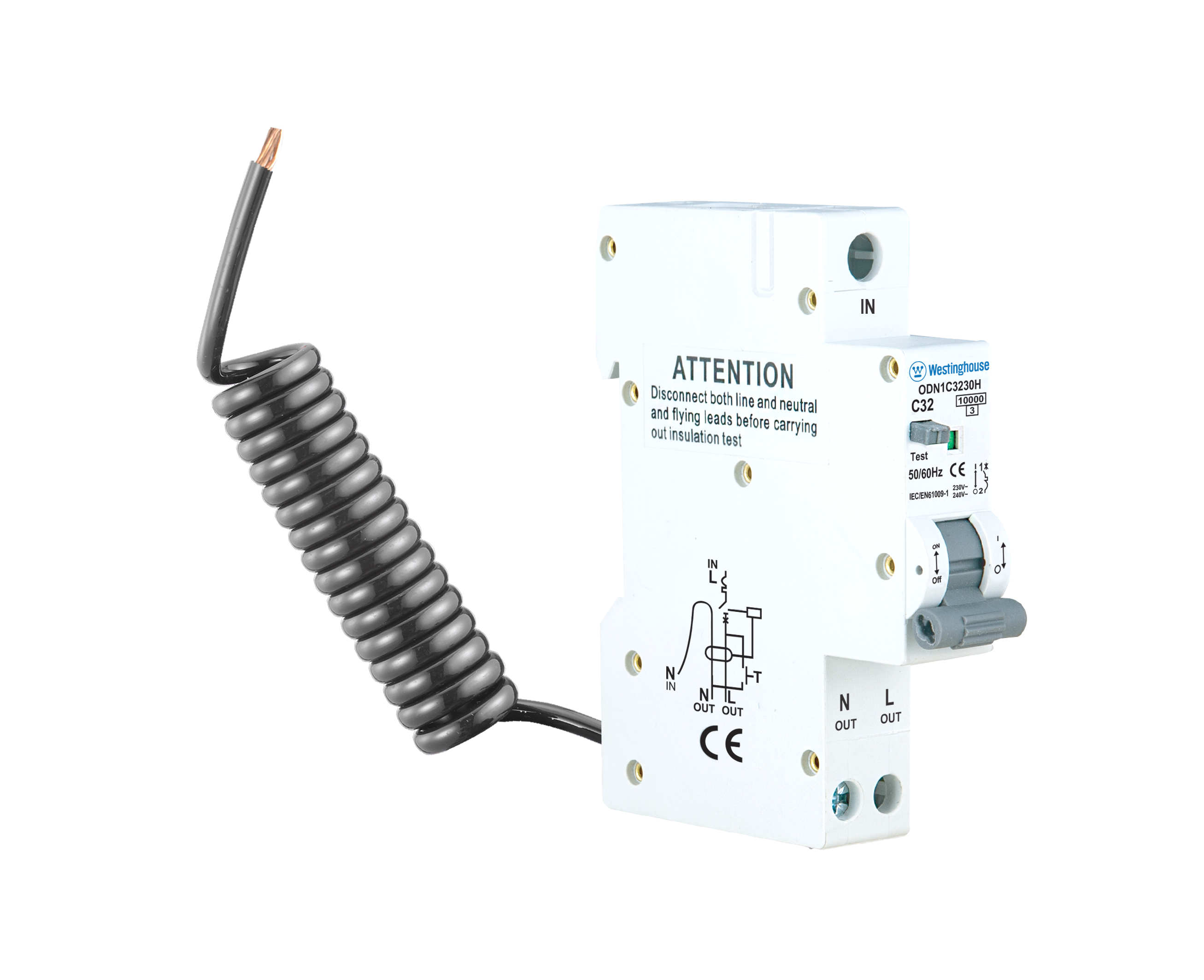

RCBO TYPE ODN

DIN-Rail RCBO IEC/EN 61009-1, 10kA, 6kA 240V

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

ODN-RCBOs are available with a breaking capacity of IEC/EN 61009-1 at 10kA, 6kA. The RCBO are calibrated to 40°C and can be supplied with 50°C ambient calibration. Voltage 240V, Frequency 50/60Hz.

Rating from 6A to 40A.

Sensitivities 10mA, 30mA, 100mA & 300mA.

Type A & AC, Curve B & C.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

RCBO TYPE RDN

DIN-Rail RCBO IEC/EN 61009-1 10kA or IEC/EN 61009-1 6kA 240V

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

RDN-RCBOs are available with a breaking capacity of IEC/EN 61009-1 at 10kA, 6kA The RCBO are calibrated to 40°C and can be supplied with 50°C ambient calibration. Voltage 240V, Frequency 50/60Hz.

Rating from 6A to 40A.

Sensitivities 10mA, 30mA, 100mA & 300mA.

Type A & AC, Curve B & C.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

RCBO TYPE CNO

RCBO's Residual Current Operated Circuit Breaker 6kA,10kA IEC/EN61009-1 with Over Current Protection

Feature

CNO-RCBOs are available with a breaking capacity of IEC/EN 61009-1 at 10kA, 6kA The RCBO are calibrated to 40°C and can be supplied with 50°C ambient calibration. Voltage 240V, Frequency 50/60Hz. cable size up to 50mm² . Positive contact indicators by flags, Green-Open, Red-Closed. Seperate trip indicator flag showing Red-Trip, White-Healthy, Connection by cable or busbar, IP rating is IP20, Mounting is Din rail 35 mm.

Rating from 10A to 40A.

Sensitivities 10mA, 30mA & 100mA.

Sensitivity 300mA available on request.

Type A & AC, Curve B & C.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

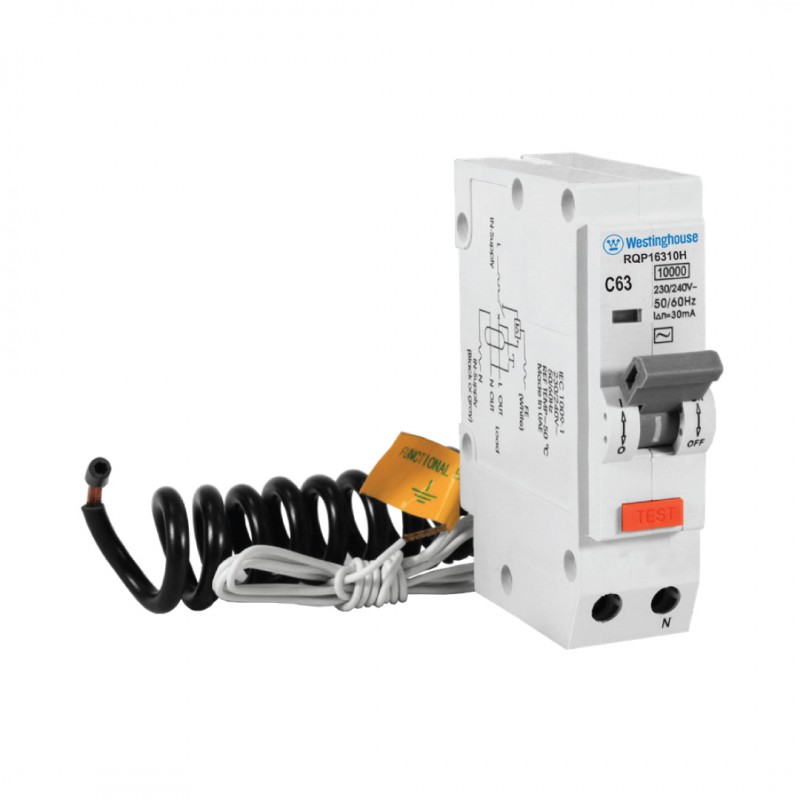

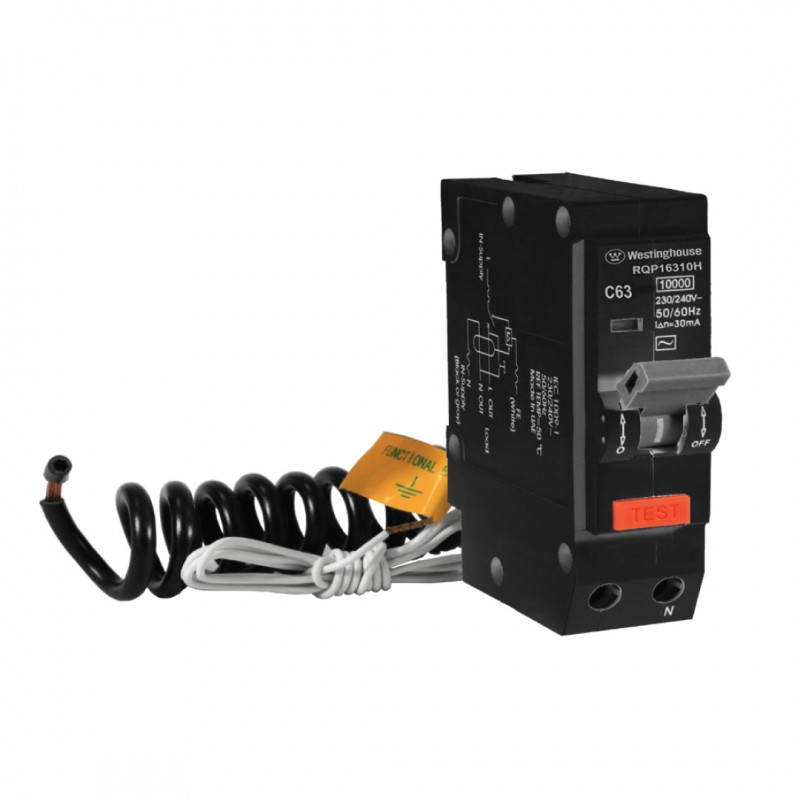

RCBO Type RQP

Plug-in RCBO IEC/EN 61009-1 10kA (240V)

Feature

RQP-RCBOs are available with a breaking capacity of 10kA to IEC61009-1. The RCBO are calibrated to 40°C and can be supplied with 50°C ambient calibration. Voltage 240V, Frequency 50/60Hz.

Rating from 6A to 40A.

Sensitivities 10mA, 30mA, 100mA & 300mA.

Type A & AC, Curve B & C.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

RCBO Type RQPB

Plug-in RCBO IEC/EN 61009-1 10kA (240V)

Feature

RQPB-RCBOs are available with a breaking capacity of 10kA to IEC61009-1. The RCBO are calibrated to 40°C and can be supplied with 50°C ambient calibration. Voltage 240V, Frequency 50/60Hz.

Rating from 6A to 40A.

Sensitivities 10mA, 30mA, 100mA & 300mA.

Type A & AC, Curve B & C.

Ratings below 6Amp. available on request.

Download Datasheet Download Complete Datasheet

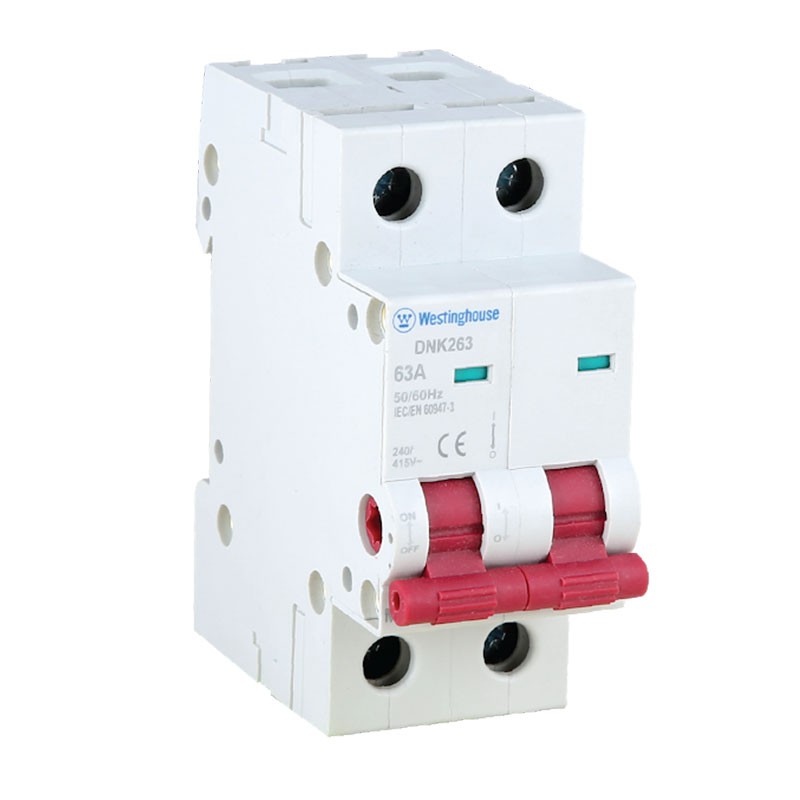

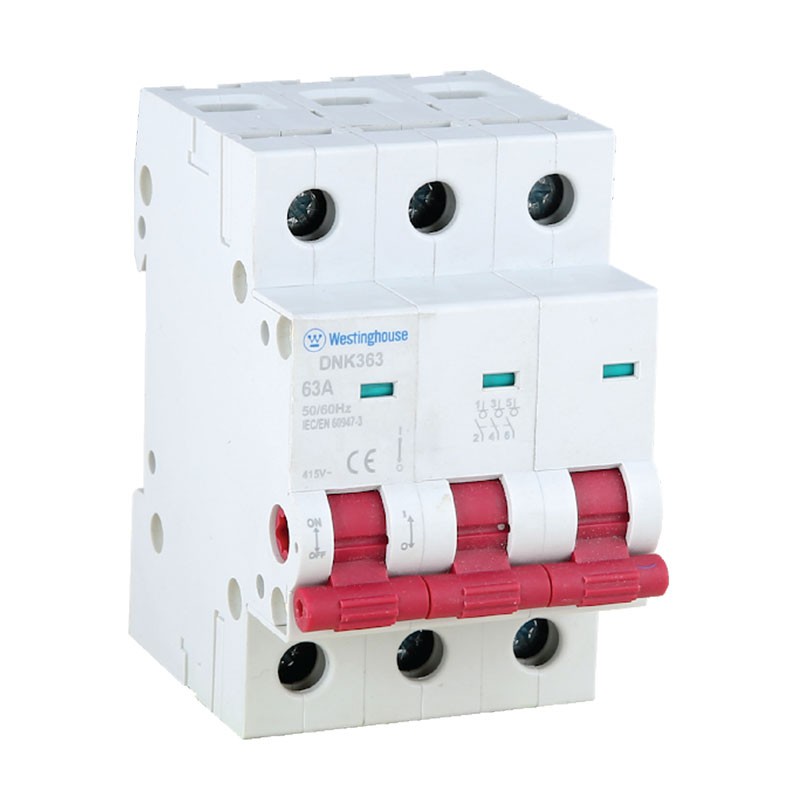

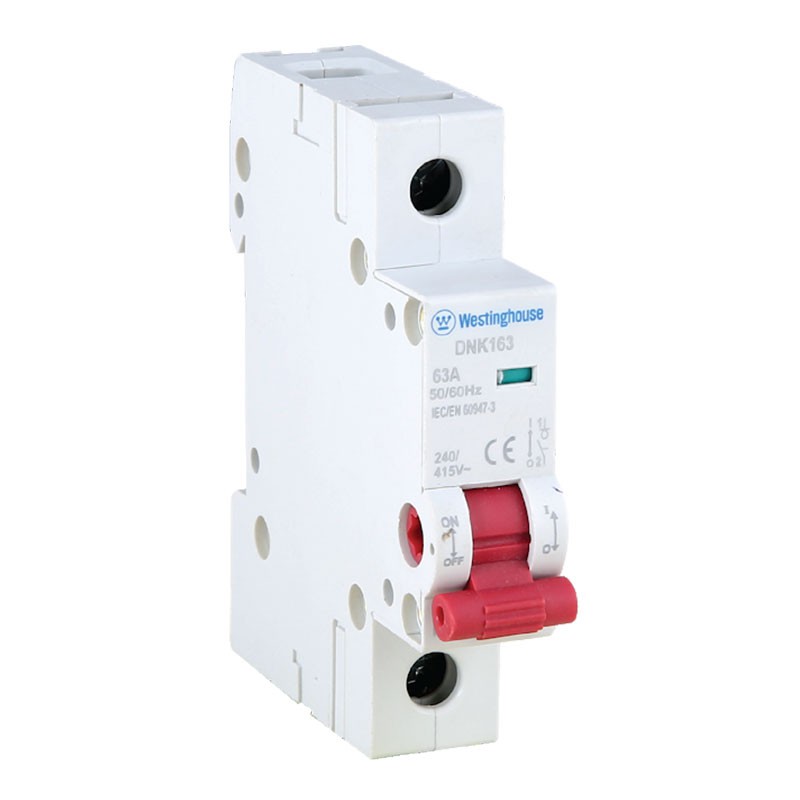

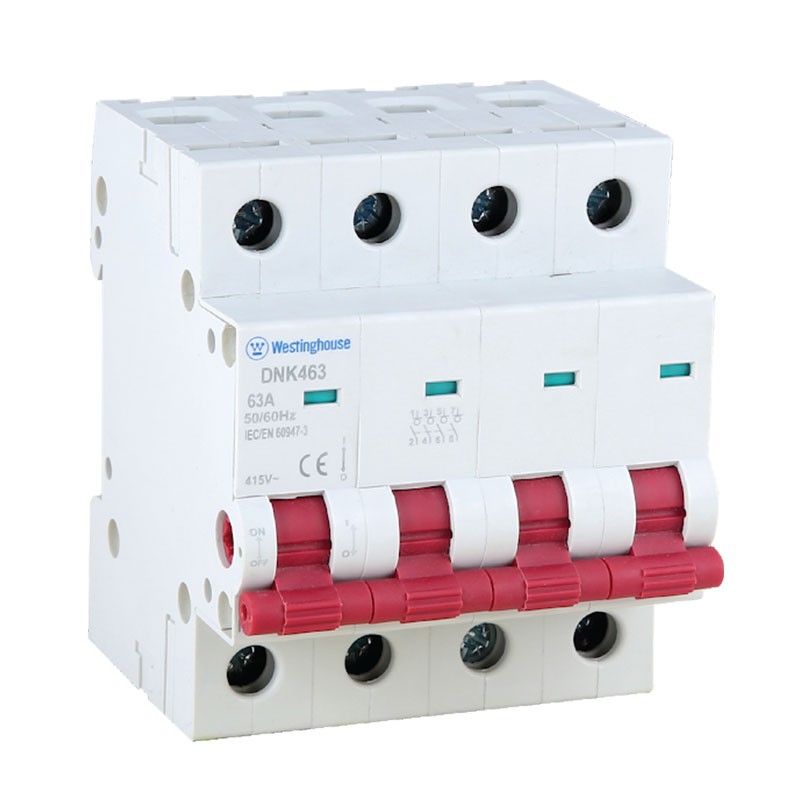

Isolator TYPE DNK

DIN-Rail IEC/EN60947-3 Isolator Switch (240V/415V)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

Its used for industry, commercial and residencial applications, used as main switch. IEC/EN60947-3. Voltage 240/415V, Frequency 50/60Hz.

Rating from 16A to 125A. 1P, 2P, 3P & 4P.

Download Datasheet Download Complete Datasheet

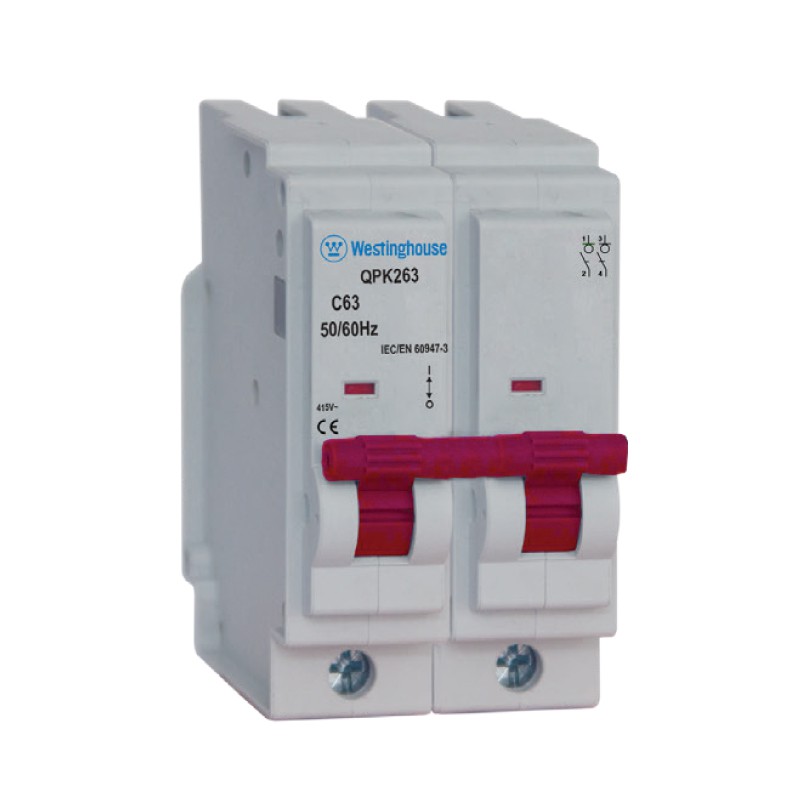

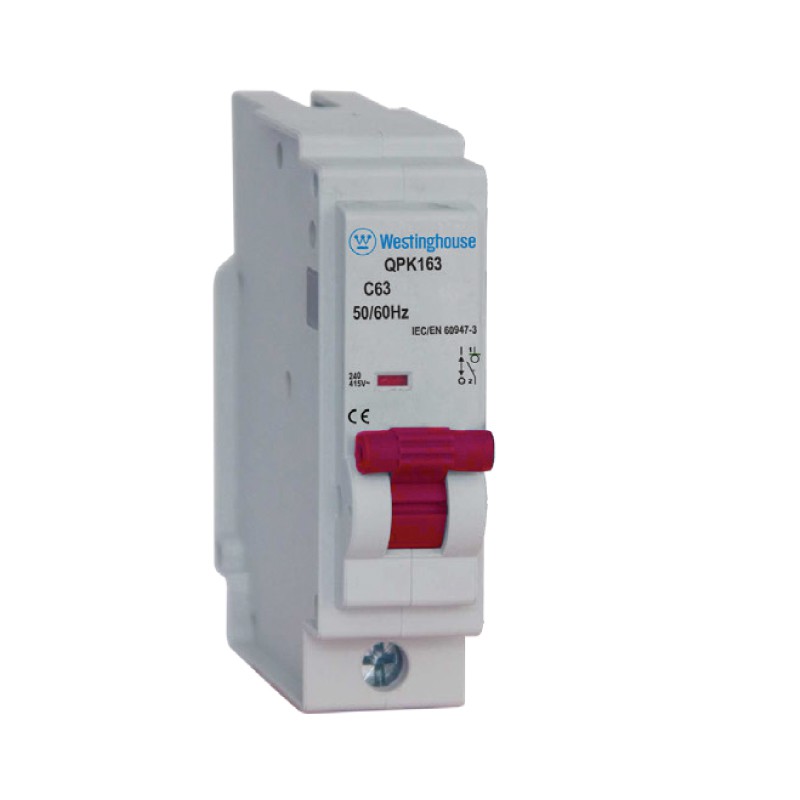

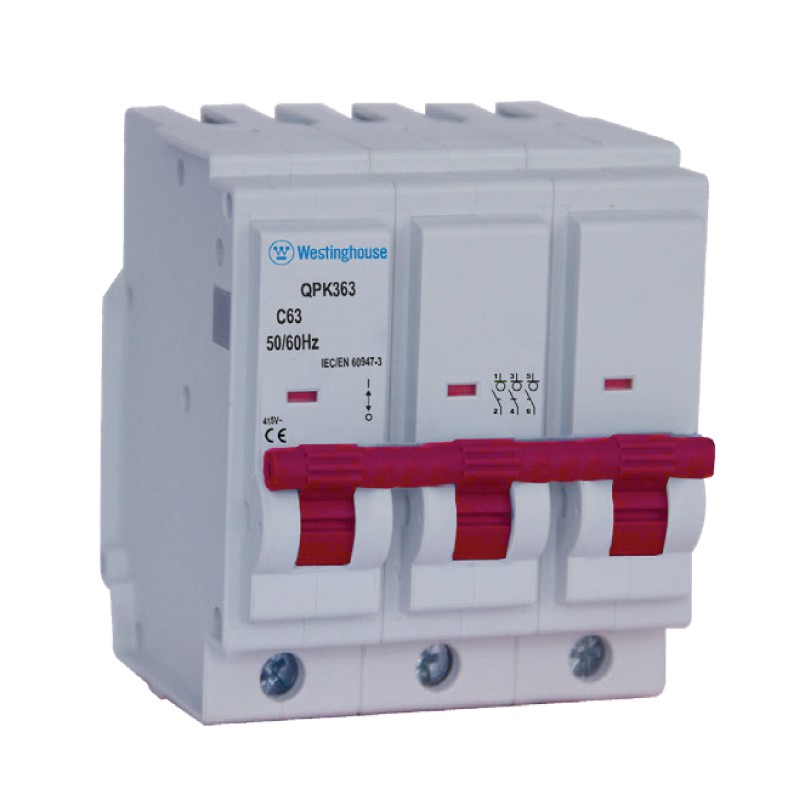

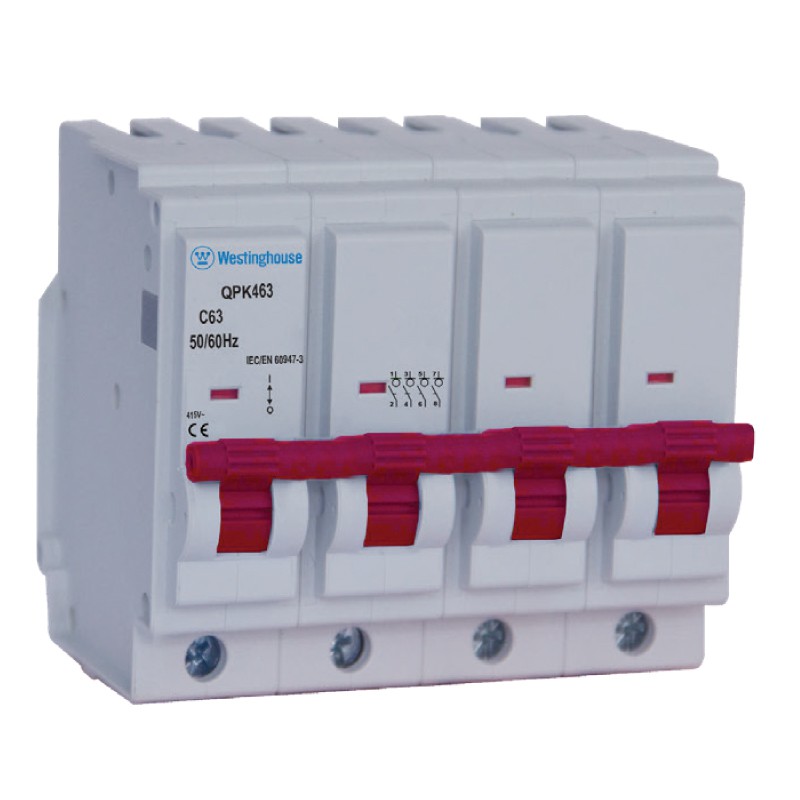

Isolator TYPE QPK

Plug-in IEC/EN60947-3 Isolator Switch (240V/415V)

Feature

Its used for industry, commercial and residencial applications, used as main switch. IEC/EN60947-3. Voltage 240/415V, Frequency 50/60Hz.

Rating from 40A to 125A. 1P, 2P, 3P & 4P

Download Datasheet Download Complete Datasheet

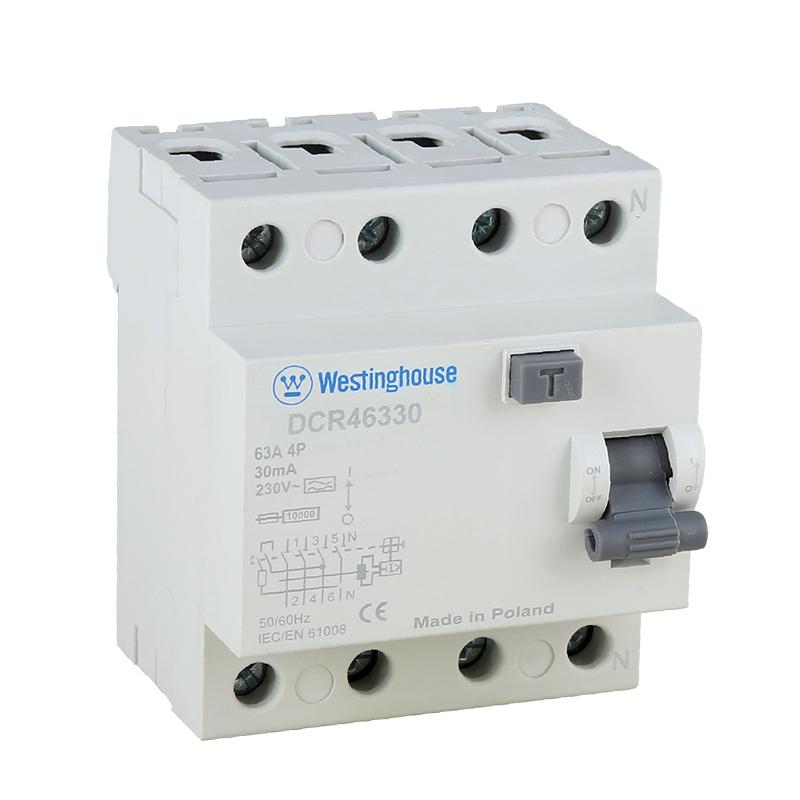

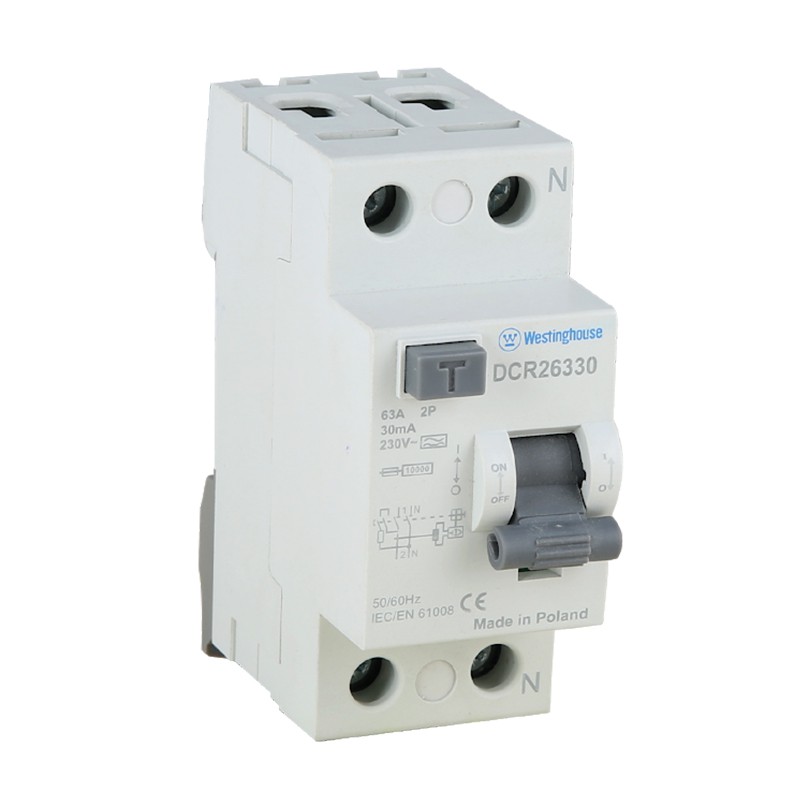

RCCB TYPE DCR

Residual Current Circuit Breaker IEC/EN 61008-1 (RCCB)

INDUSTRY

HOME / OFFICE

COMMERCIAL

MOTOR

Feature

DCR are available in accordance with IEC/EN61008-1 10kA. Cable size up to 50mm². The DCR devices will trip to a central position under earth fault condition, Positive contact indicators by flag- Green Open, Red Closed, indication of trip by separate oval indicator - Yellow, Voltage 240/415V, Frequency 50/60Hz, connection by cable or busbar, IP rating is IP20, Mounting is Din rail 35 mm.

Rating from 25A to 100A. 2P & 4P.

Sensitivities 30mA, 100mA & 300mA.

Type A & AC.

Download Datasheet Download Complete Datasheet

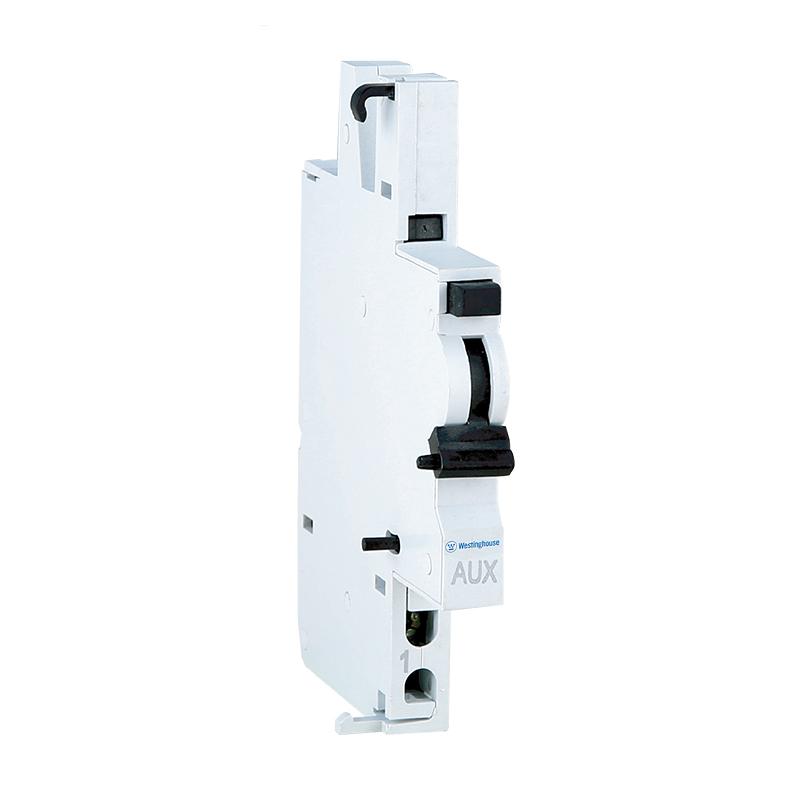

Auxilary Switch

1NO + 1NC 5A- 230V~

Feature

Allows remote indication of main contact status

Download Datasheet Download Complete Datasheet

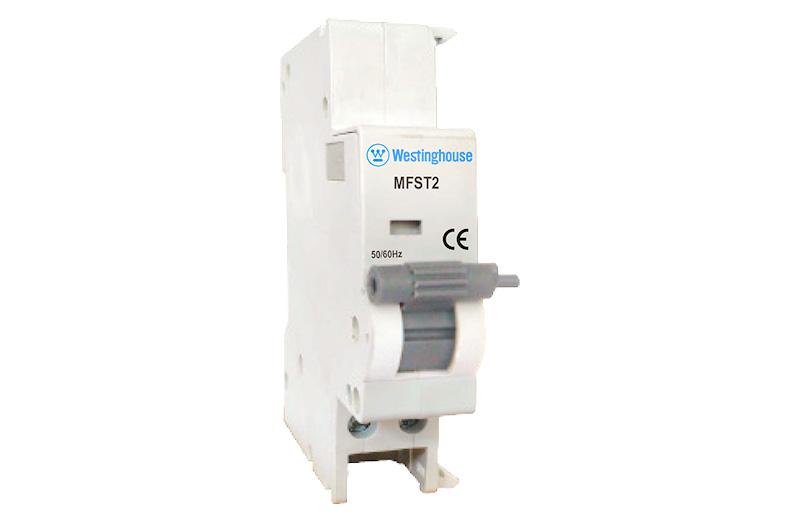

Shunt Trip Release

230V-415V AC | 110V-130V DC

Feature

Allows remote tripping operation of the coil is indicated by a ag on the product fascia.

Download Datasheet Download Complete Datasheet

Under Voltage release

MFUV3 Ref. No. W601106

Feature

allows MCB to be closed only when voltage is above 85% of Un. MCB will automatically trip when voltage falls to between 70-35% of Un. Operation of the coil is indicated by flag on the
product facia 230Vac, 48Vdc.

Download Datasheet Download Complete Datasheet

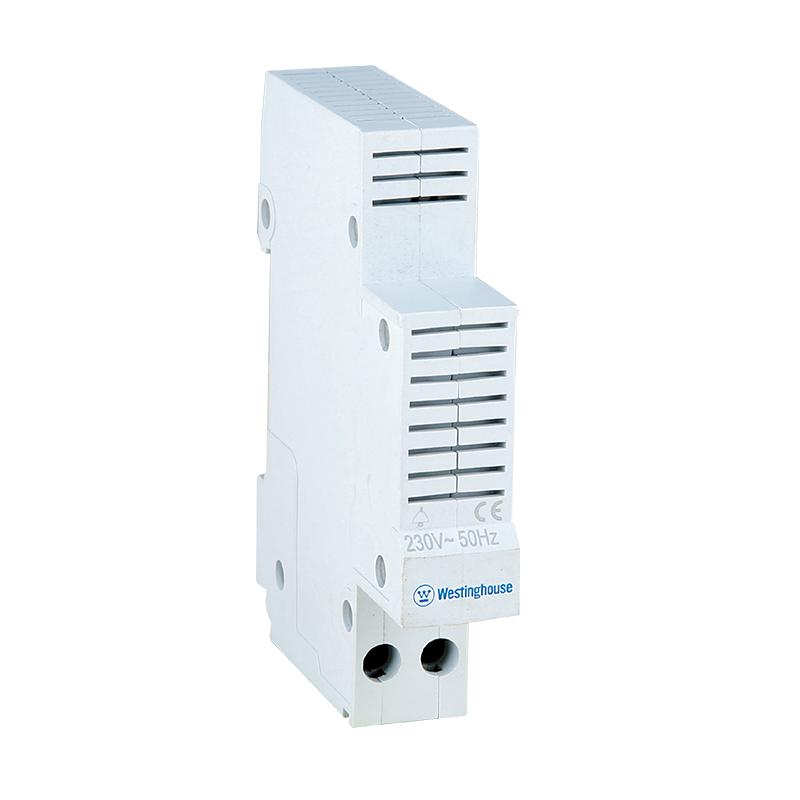

Alarm

CBELL Ref. No. W601107

Feature

Indication of wherther MCB has been turned off or tripped.

Download Datasheet Download Complete Datasheet

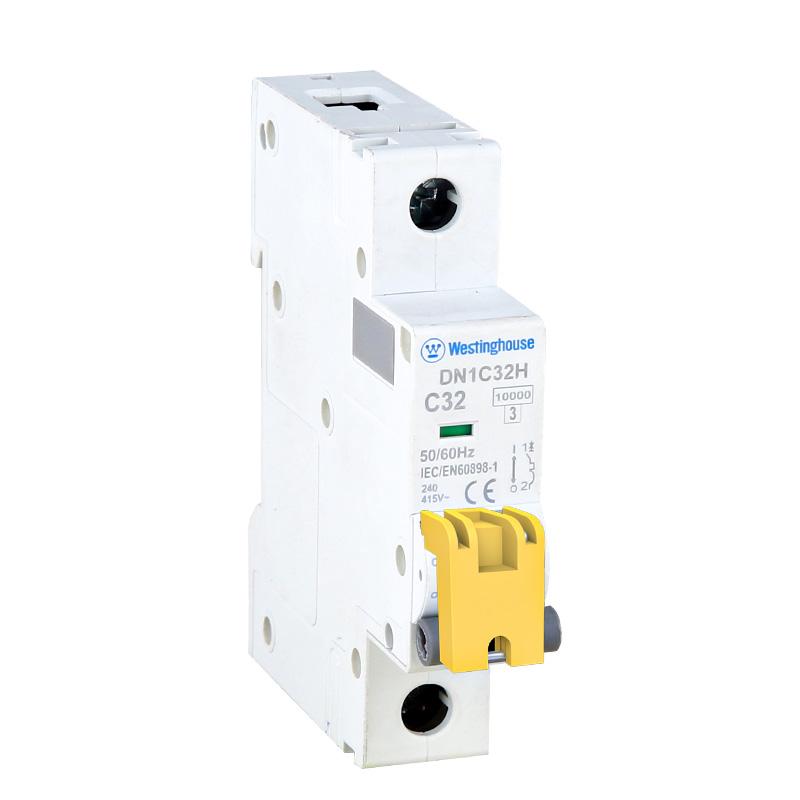

Padlockable

MFPL5 Ref. No. W601108

Feature

For the toggle of the device supplied without padlock. This allows lock of the on/off position will accept two padlocks with hasps of 4.75 mm.

Download Datasheet Download Complete Datasheet

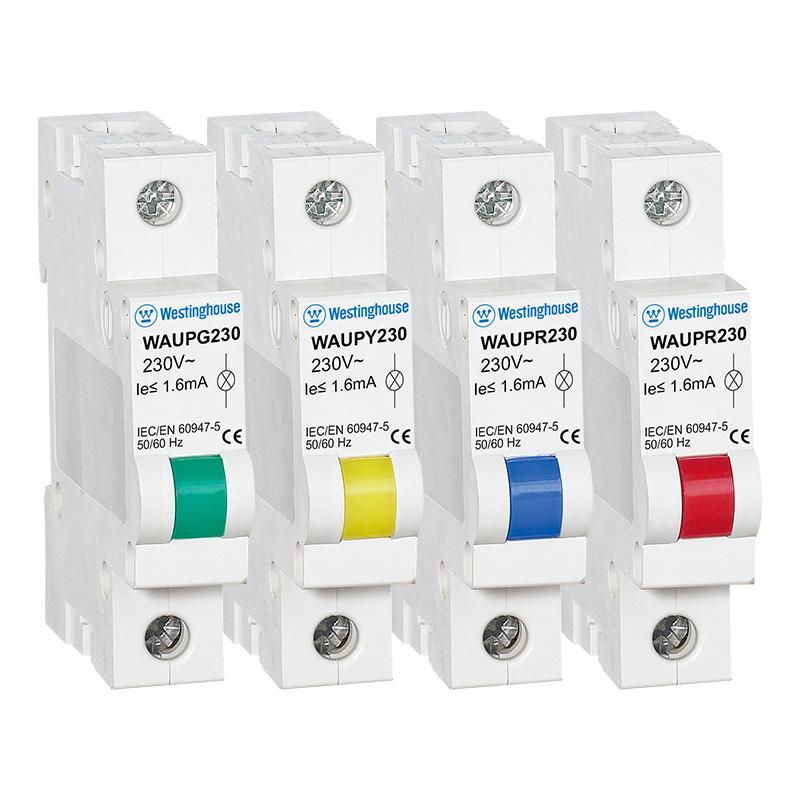

Modular Signal Lamp

WAUP Series | IEC/EN 60947-5-4

Feature

The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ and Frequency 50Hz/60Hz for visual indication and warning.

Rate Voltage (Un): 24/48/110/230VAC

Download Datasheet Download Complete Datasheet

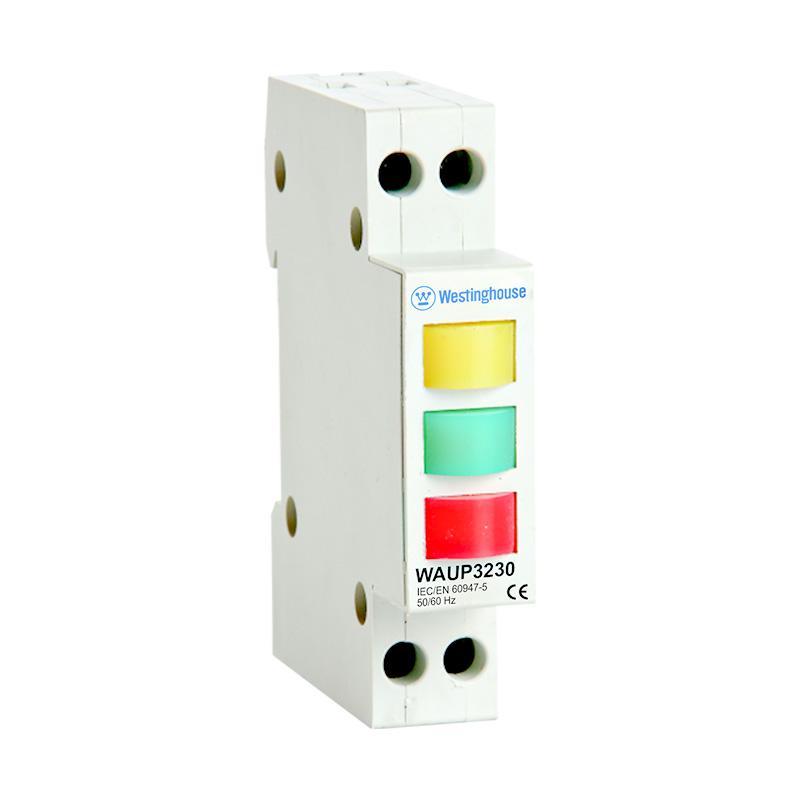

Modular Signal Lamp ( WAUP3 Series )

WAUP3 Series | IEC 60947-5-1

Feature

Applicable to circuit with rated voltage 230V~ and frequency 50/60Hz for visual indication and warning. Three phase LED lamp in one module. Obviously indication phase with three different color.
