Low Voltage Systems & Solutions

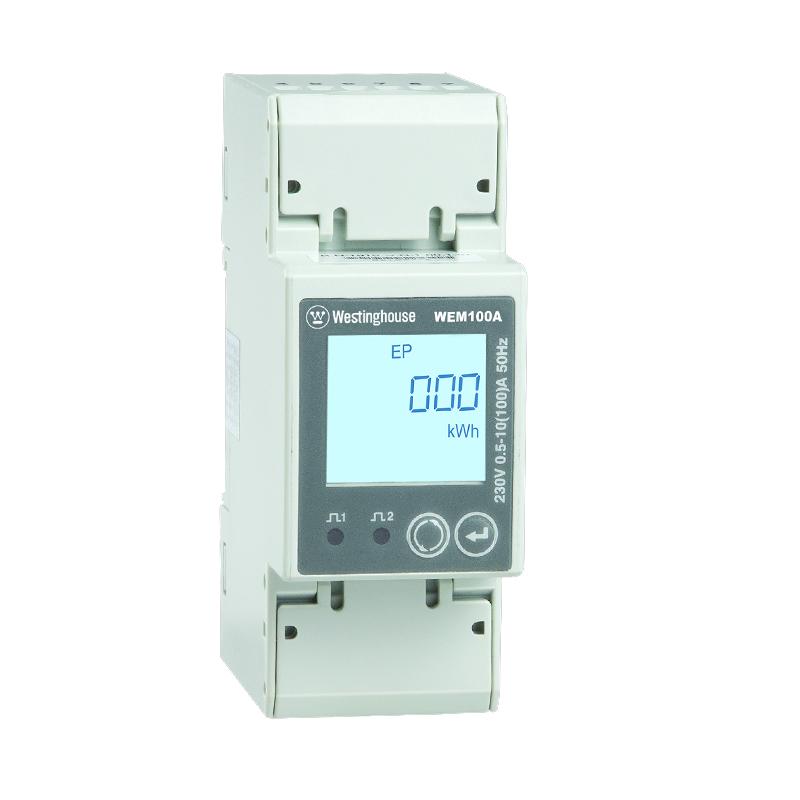

Energy Meter

(WEM100A)

Feature

• 1Ø True RMS (Voltage, Current)
• 1Ø Power (Active, Reactive, Apparent)
• Self Powered, 100A Direct Connection
• Bi - Directional Measurement IMP & EXP
• Max Demand Power
• Modbus RTU Communication (RS485)
• Two Pulse Outputs
• LED Pulse Indication
• LCD Display with Backlight

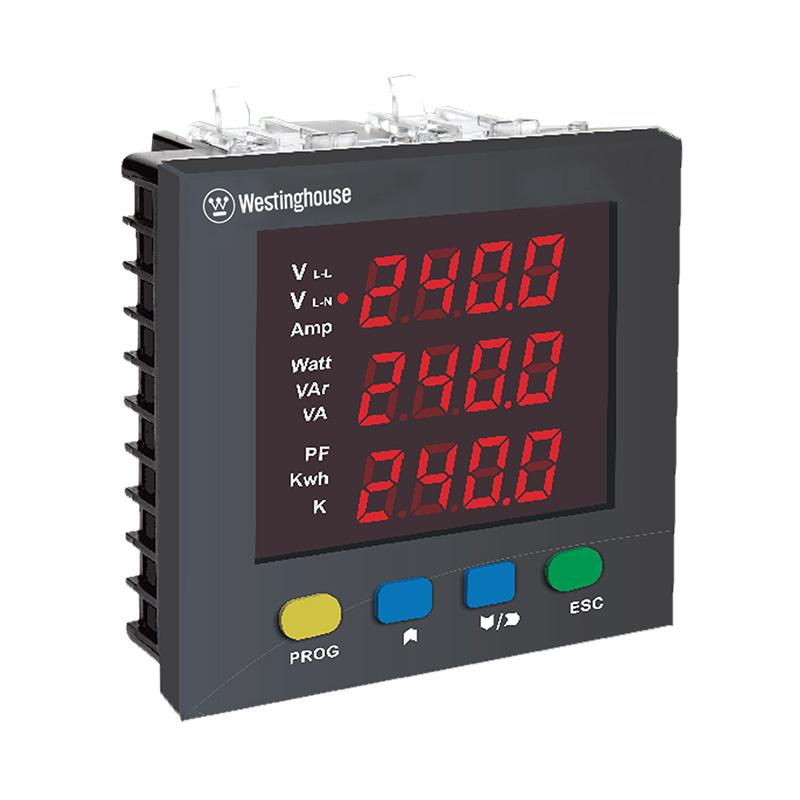

Multifunction Meter (WMM)

Feature

• Segment bright red LED display
• Site Programmable CT and PT ratio
• True RMS measurement
• Password protection
• Optional features
  • a) 60A direct current (External CT module available)

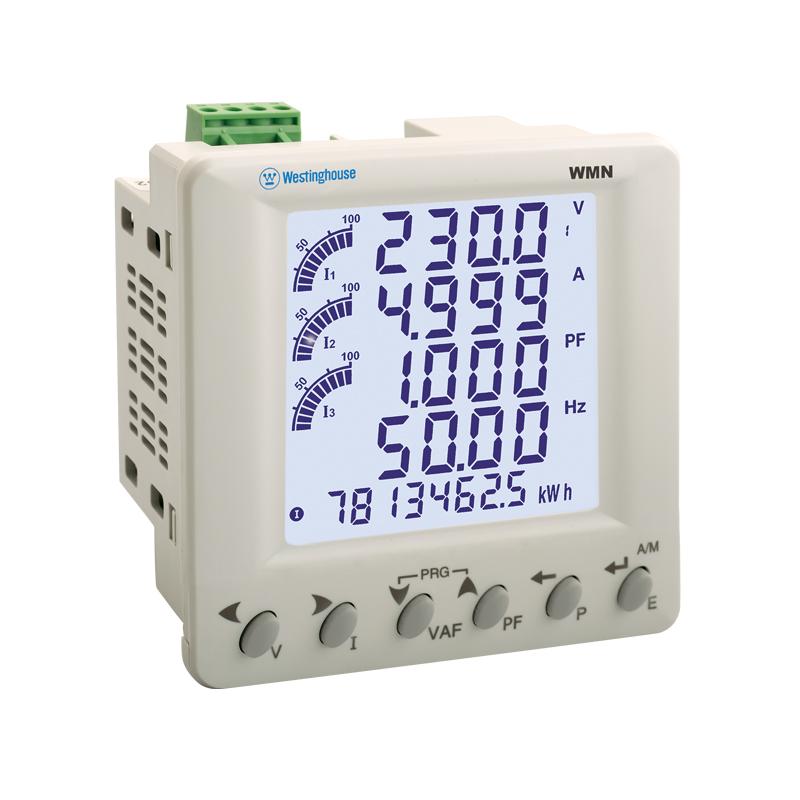

Multifunction Meter (WMN)

Feature

• 3Ø True RMS (Voltage, Current)
• 3Ø Power (Active, Reactive, Apparent), Energy (Active, Reactive, Apparent)
• Programmable CT / PT Primary / Secondary
• CT Polarity Error Detection
• Variable Pulse Width Selection
• Single Phase Network with Phase Selection
• Modbus RTU Communication (RS485)
• Neutral Current Measurement
• THD Upto 31st Level
• Max Demand for Power
• Single Pulse Output / Demand
• Phase Sequence Detection

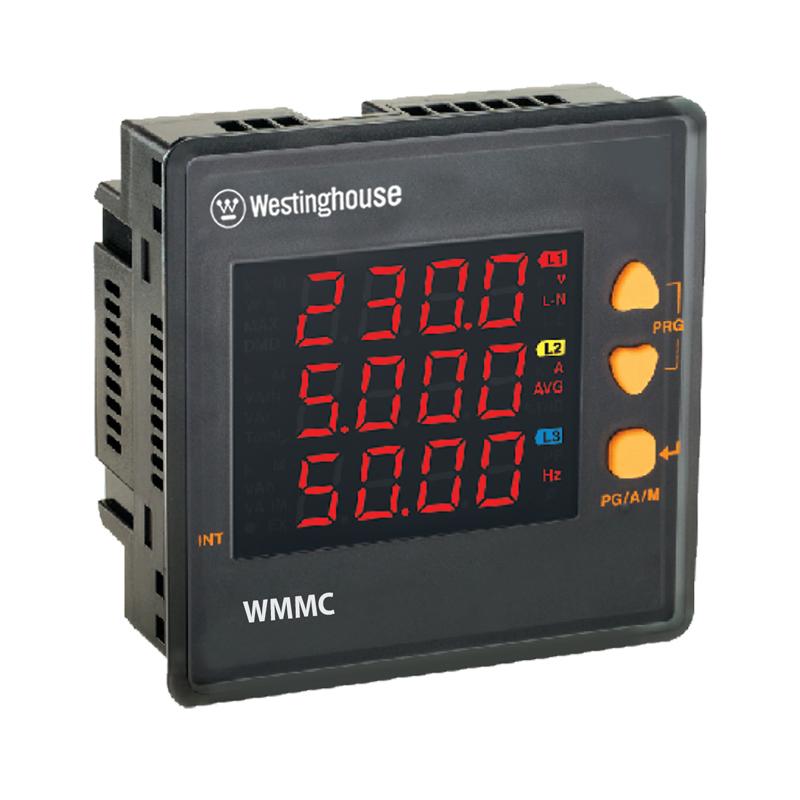

Multifunction Meter (WMMC)

Feature

• 3Ø True RMS (Voltage, Current)
• 3Ø Power (Active, Reactive, Apparent), Energy (Active, Reactive, Apparent)
• Programmable CT / PT Primary / Secondary
• Single Phase Output
• Energy (Active, Reactive, Apparent )
• Single Phase Output / Demand

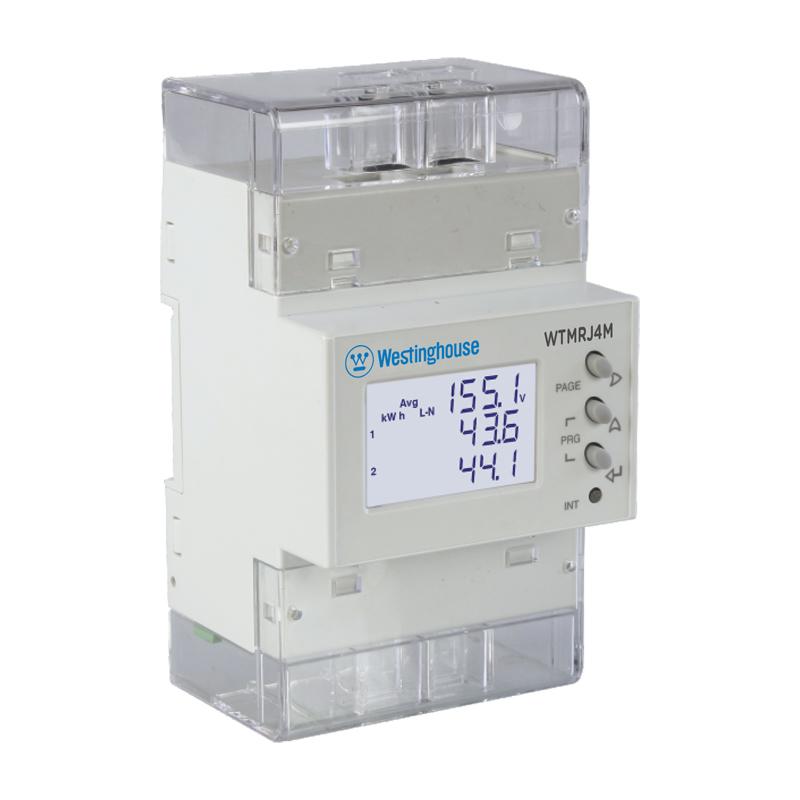

MULTIFUNCTION METER WTMRJ4M

Feature

Monitors Electrical Parameters for 4 loads, 12 Loads

RS485 Commuication MODBUS RTU Protocal

Self Powered

Power (Active, Reactive, Apparent )

Energy (Active, Reactive, Apparent )

MULTIFUNCTION METER WTMRJ4M2

Feature

• 3Ø True RMS (Voltage, Current)
• Plug-n-Wire quick connect current input
• Energy (Active, Reactive)
• 3Ø Power (Active, Reactive, Apparent)
• Programmable CT Primary, PT Primary/ Secondary
• Modbus RTU Communication (RS485 )
• Single Pulse Output
• Max Demand power
• Self Powered

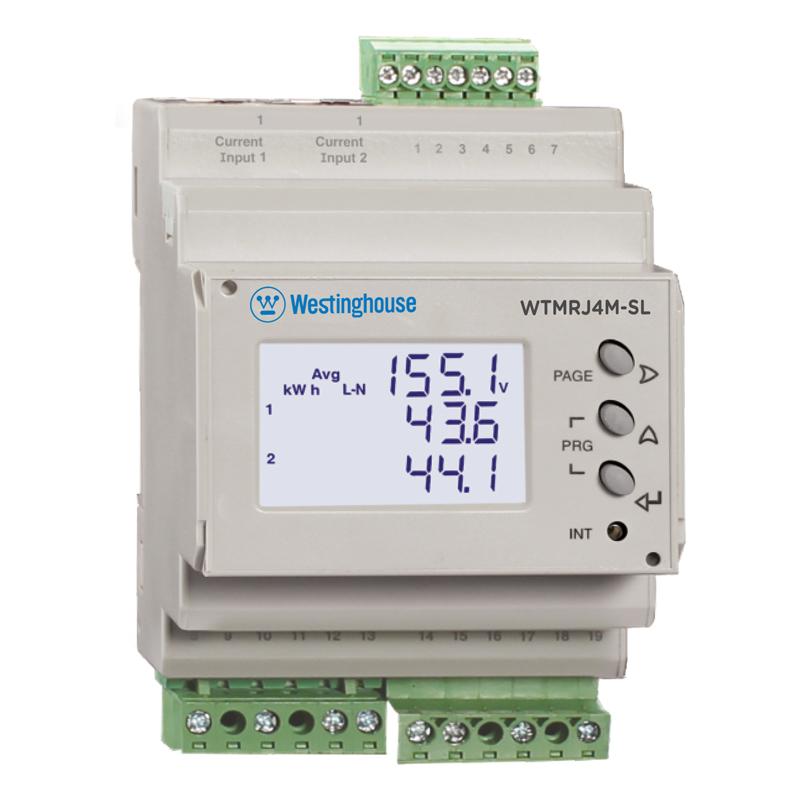

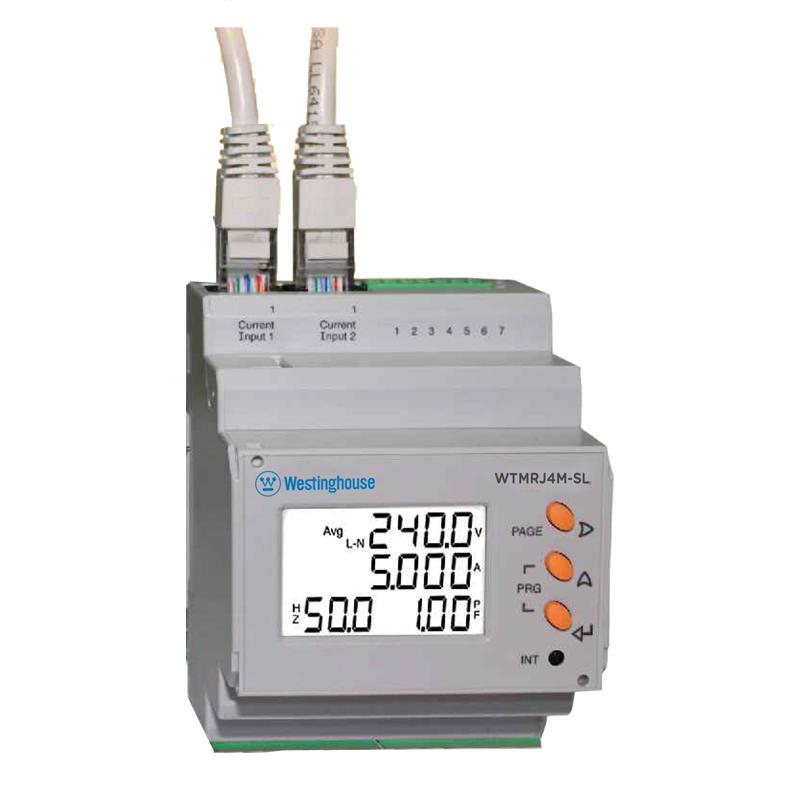

MULTIFUNCTION METER WTMRJ4M-SL

Feature

• 3Ø True RMS (Voltage, Current)
• 3Ø Power (Active, Reactive, Apparent)
• Energy (Active, Reactive)
• Plug-n-Wire Split load current input
• Programmable CT Primary, PT Primary/ Secondary
• Modbus RTU Communication (RS485 )
• 2 Pulse Outputs
• Max Demand of power
• Self Powered

MULTIFUNCTION METER WTMRJ385

Feature

• True RMS Measurement Of All Basic 3Ø Electrical Parameters
• Energy (Active, Reactive, Apparent)
• Plug-n-Wire quick connect current input
• Programmable CT Primary, PT Primary/ Secondary
• RS485 Modbus Communication
• Pulse Output
• Max / Min Demand of power
• % THD upto 31st level for Voltage and Current

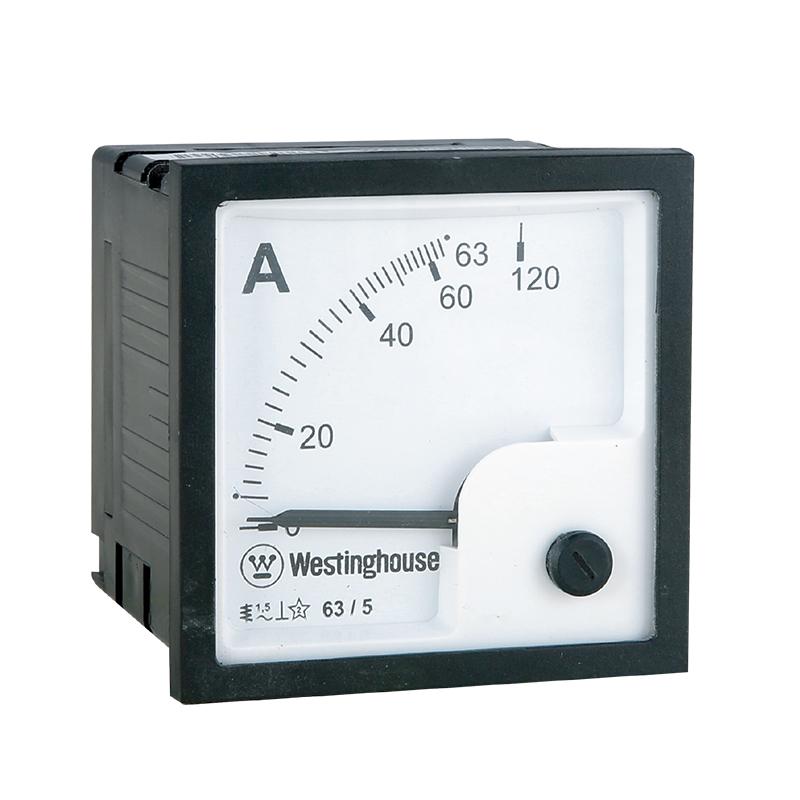

Ammeter

Feature

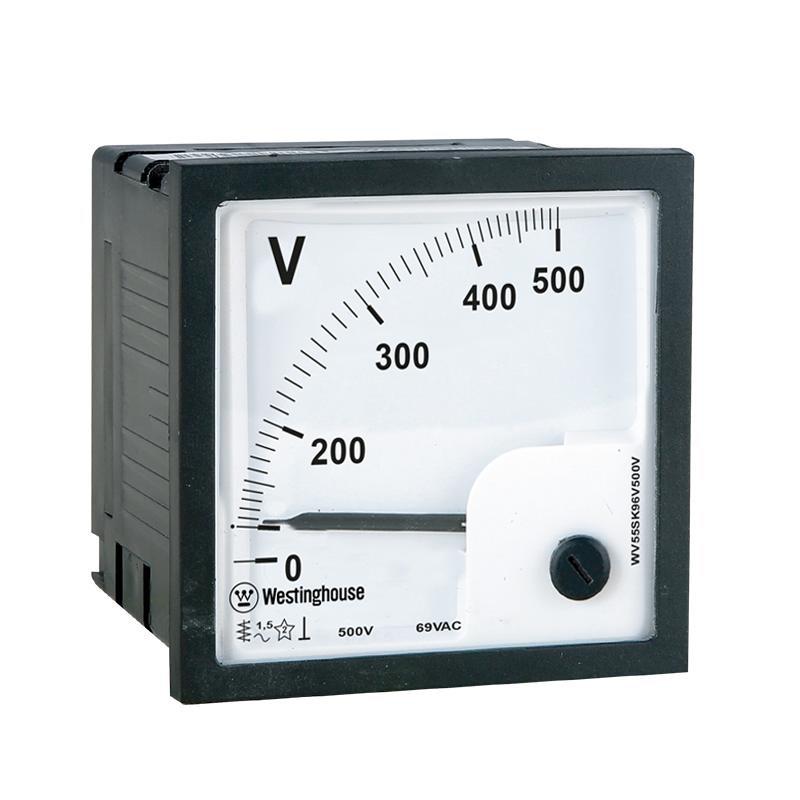

Voltmeter

Feature

Multifunction Meter WTMTJ384

Feature

•3 Ø True RMS  (Voltage, Current)

• 3 Ø Power (Active, Reactive, Apparent)

• Import / Export Active, Reactive energy, Apparent Energy.

• Programmable CT/PT Primary / Secondary

• Modbus RTU Communication (RS485)

• Max / Min Demand Power
