Air Circuit Breaker

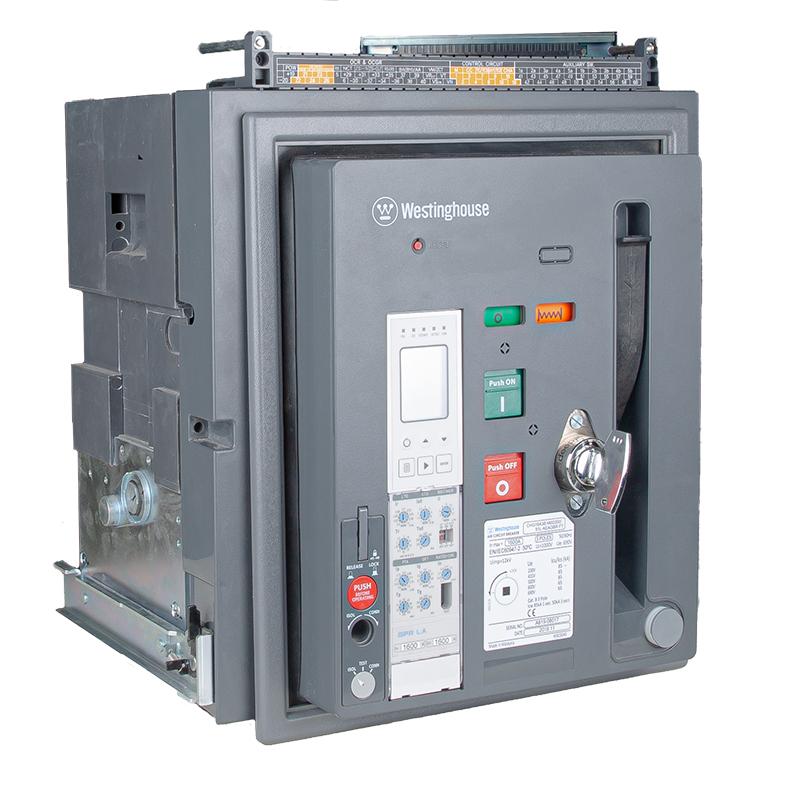

CHG, CSG Series
Feature
(CSG+CHG) series – offering six frames – covering from 630A to 6300A
Rated Impulse Withstand Voltage (Uimp) : 12kv
Type per Rating
- Drawout & Fixed, 3P & 4P Execution
- 2 Frames, CSG 1600/3200 A
- 4 Frames, CHG 2000/4000/5000/6300 A
- 100% N Phase Current Flow Capacity for all Types.
| A Frame [85 kA] | 630 ~ 1600 A (CSG) / 630 ~ 2000 A (CHG) |
| B Frame [100 kA] | 2000 ~ 3200 A (CSG) / 630 ~ 4000 A (CHG) |
| C Frame [100 kA] | 3200 ~ 5000 A (CHG) |
| D Frame [150 kA] | 4000 ~ 6300 A (CHG) |
Description
CHG - CSG Series air circuit breaker is equipped with high breaking capacity and highly functional OCR, meeting various customer applications for industrial building, data center, different industries and residential needs. The equipment is safely protected against abnormal phenomenon such as harmonics and others.
Download
Datasheet
Air Circuit Breaker

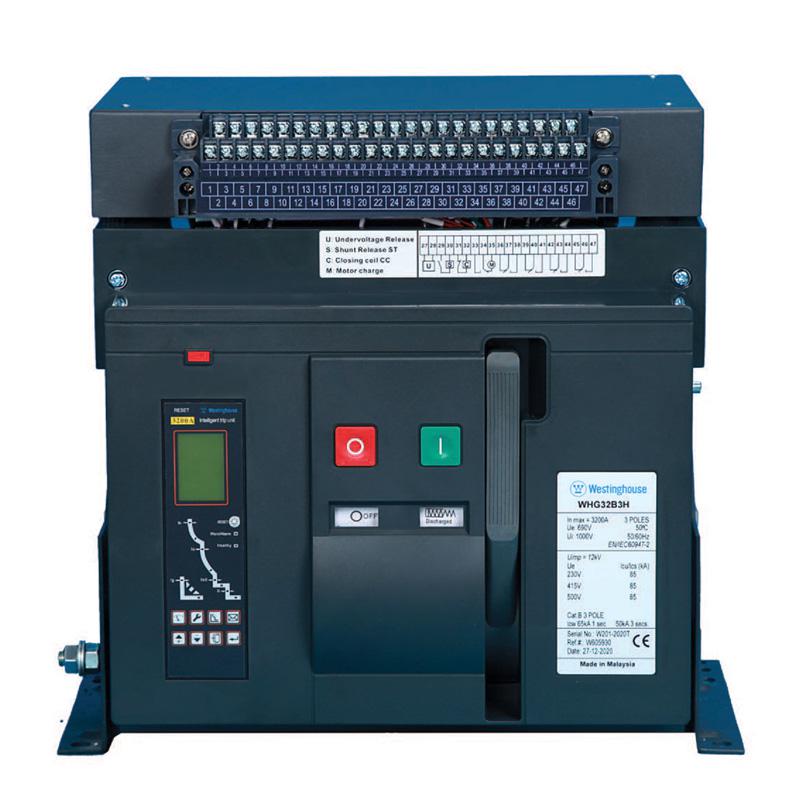

WHG Series
Feature
WHG series – offering three frames – covering from 630A to 6300A
- Rated current 630 ~ 6300A
- Short circuit breaking capcity 80 ~ 120KA (rms)
- Rate workign voltage AC690V and below
- 3P and 4P
- Drawout type and fixed type
- Multiple intelligent controllers provide different functions
- Comply with standards of IEC60947-2.
Description
WHG series intelligent air circuit breaker is used for controlling low voltage distribution network, is generally mounted in low voltage distribution board as main switch for protection.
